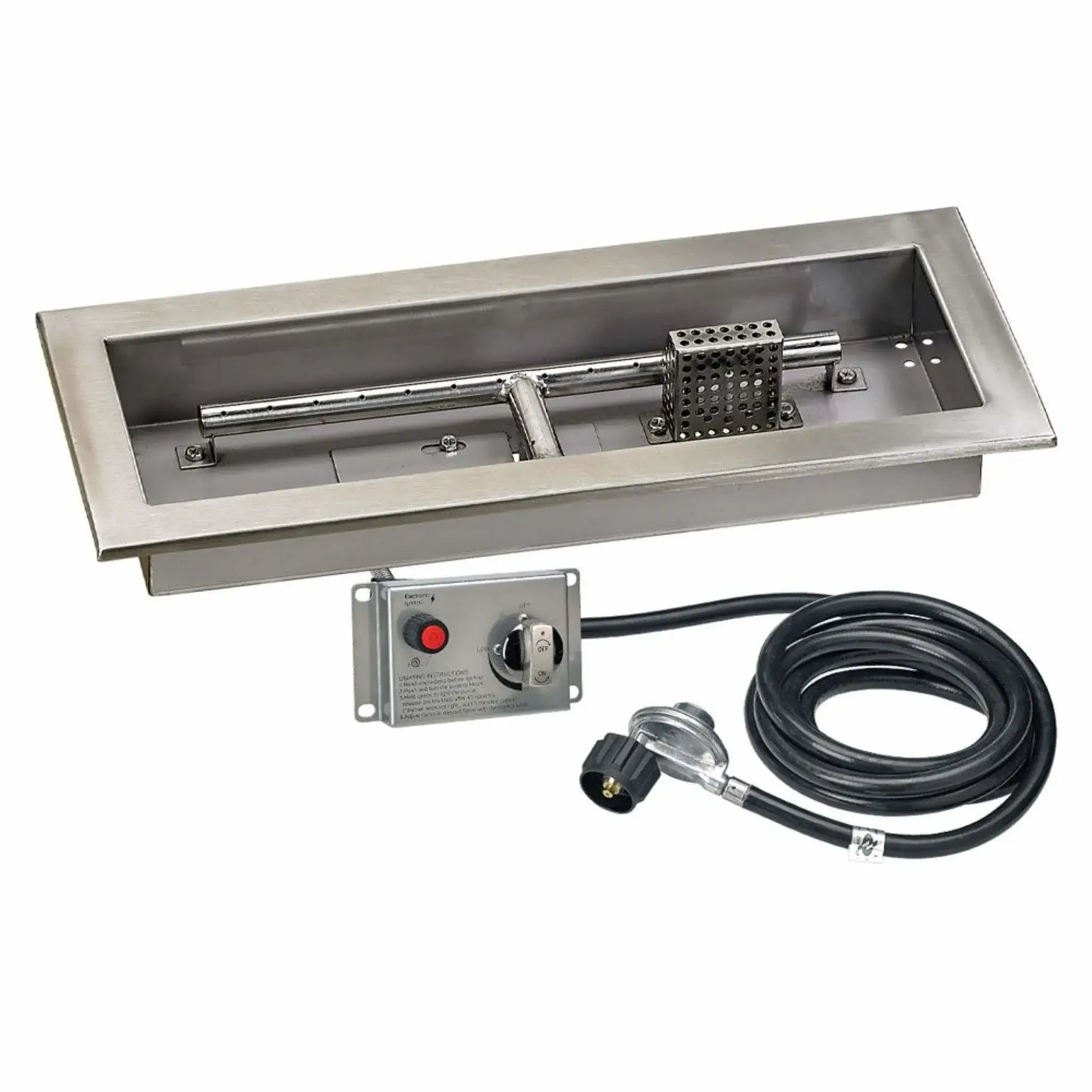

• Rectangular stainless steel drop-in fire pit pan measuring 18 by 6 inches, featuring a linear burner tube, perforated ignitor cage, and integrated propane gas connection, designed for compact outdoor fire features.

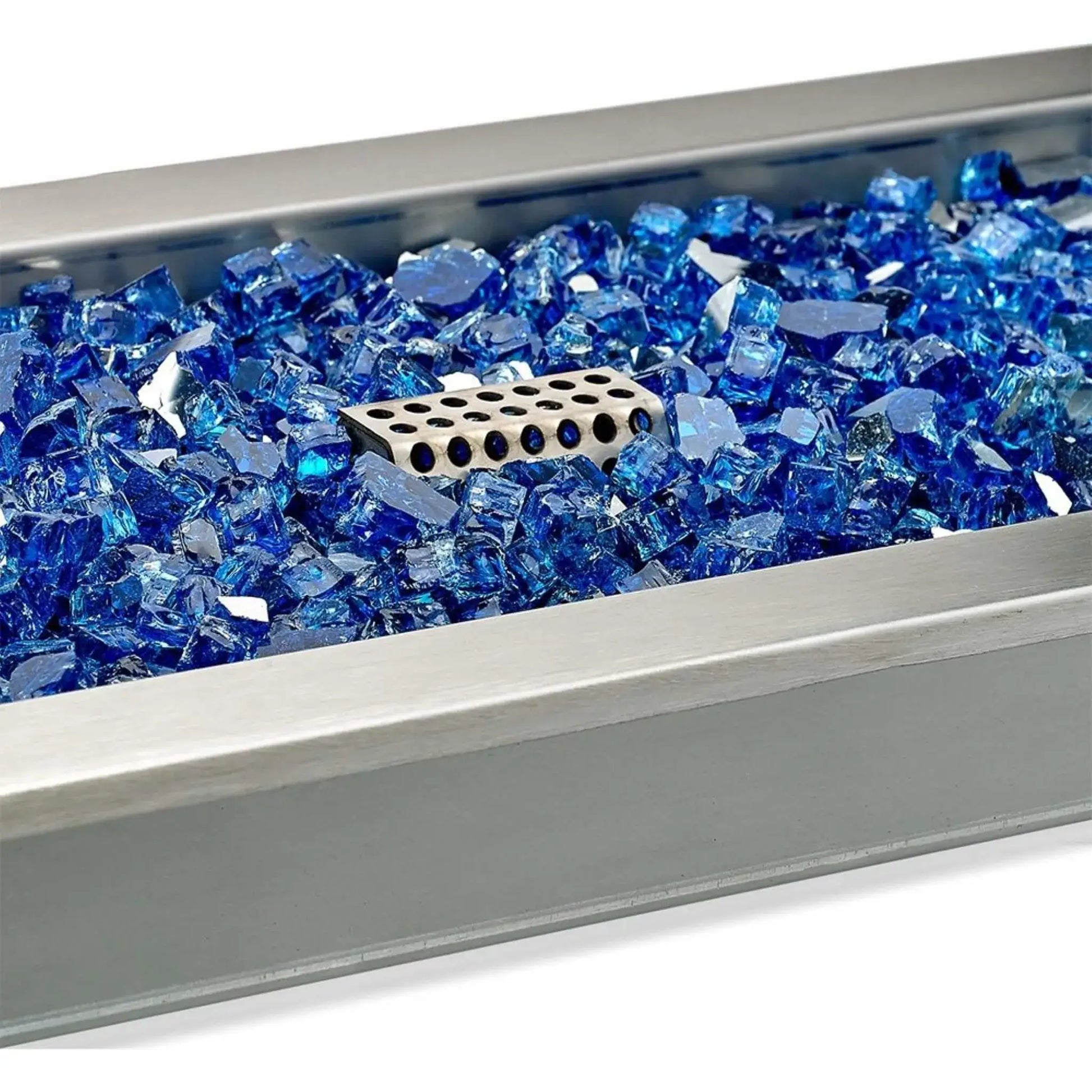

  • Close-up of the ignitor cage inside a stainless steel linear fire pit pan filled with blue cobalt fire glass, showing the protected ignition component surrounded by reflective tempered glass media.

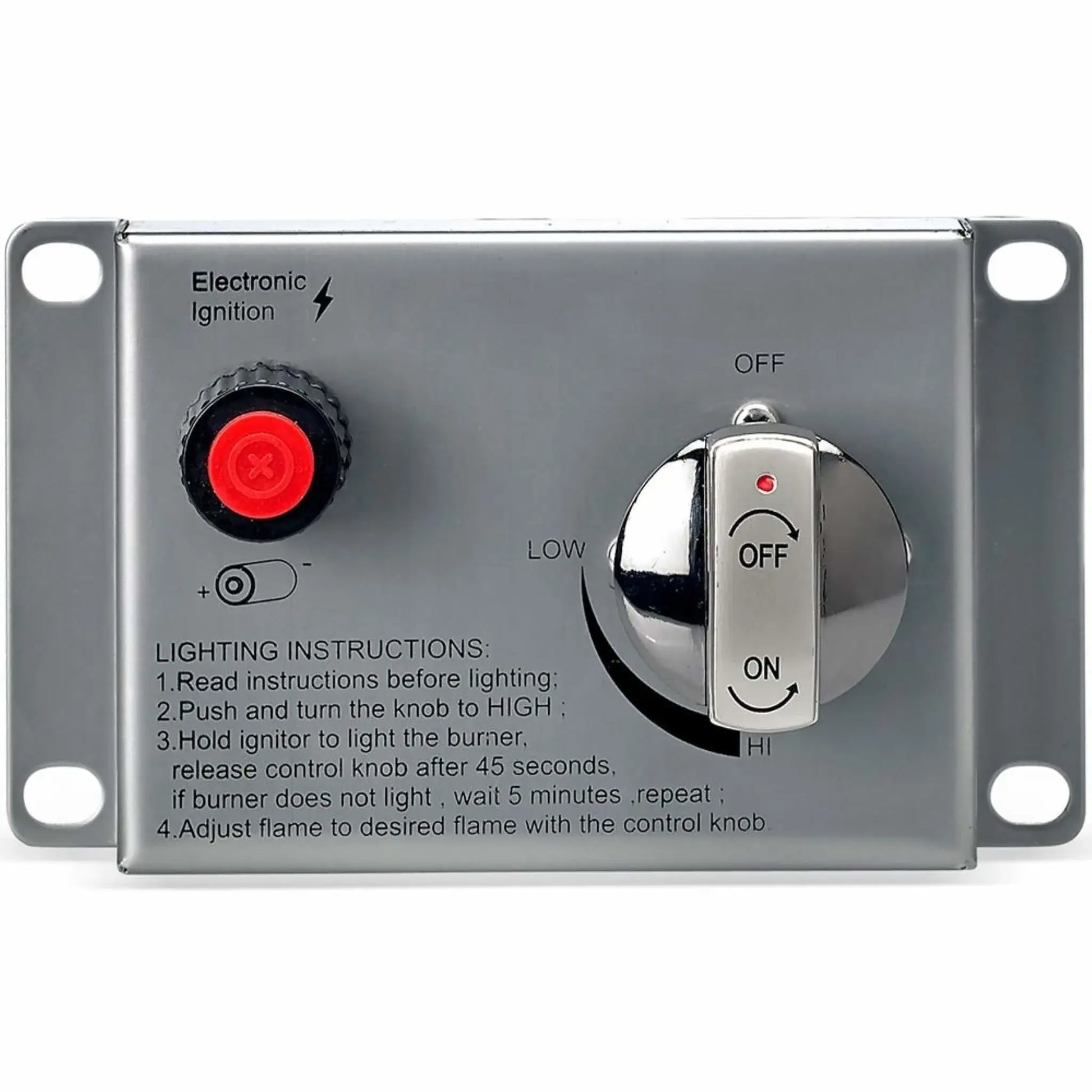

  • Close-up view of a stainless steel CSA-certified fire pit control panel featuring a red electronic ignition push button, polished flame adjustment knob, printed lighting instructions, and durable outdoor-rated construction.

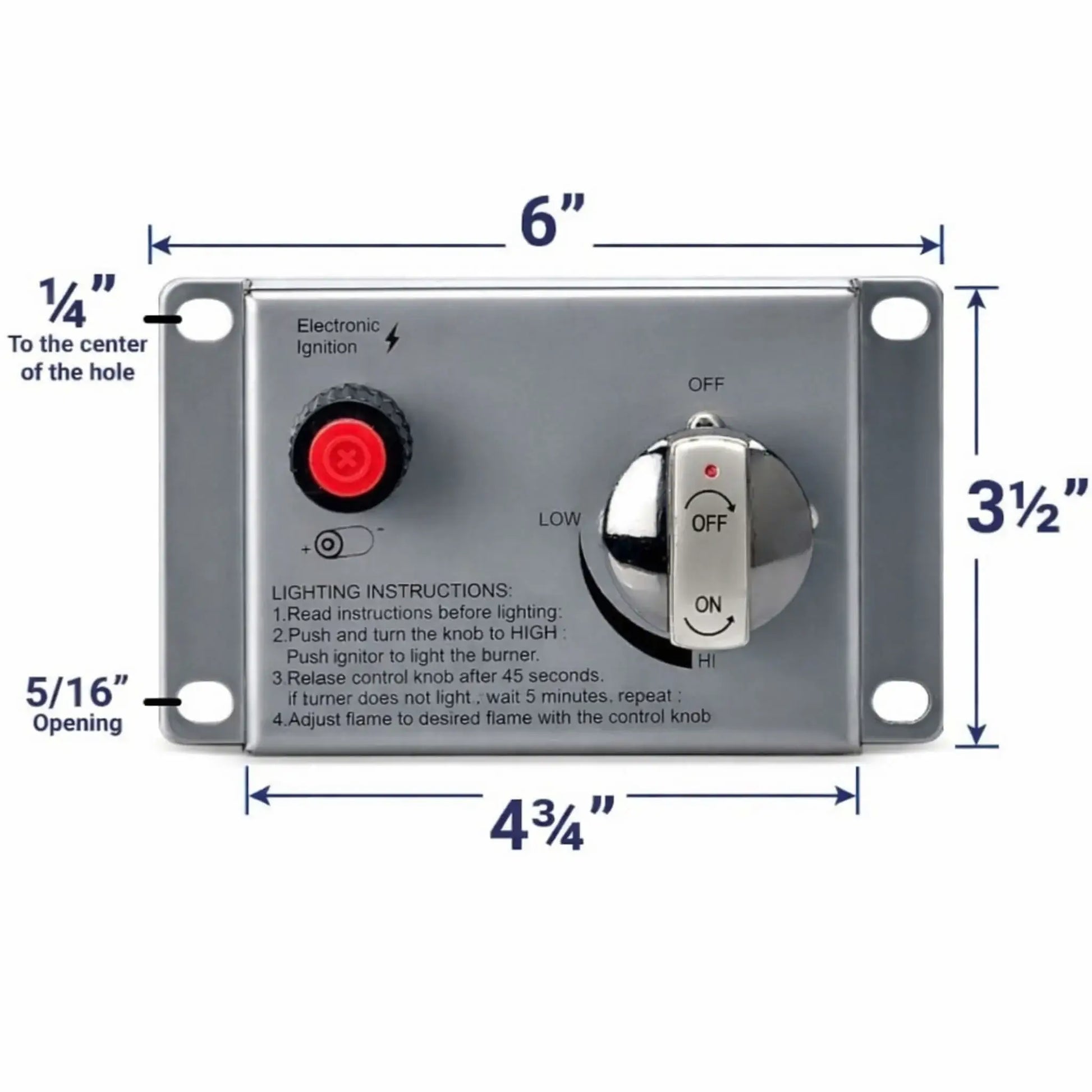

  • Dimensioned front view of a stainless steel electronic ignition control panel showing a 6-inch width, 3.5-inch height, mounting hole spacing, ignition button placement, and flame control knob labeled from off to high.

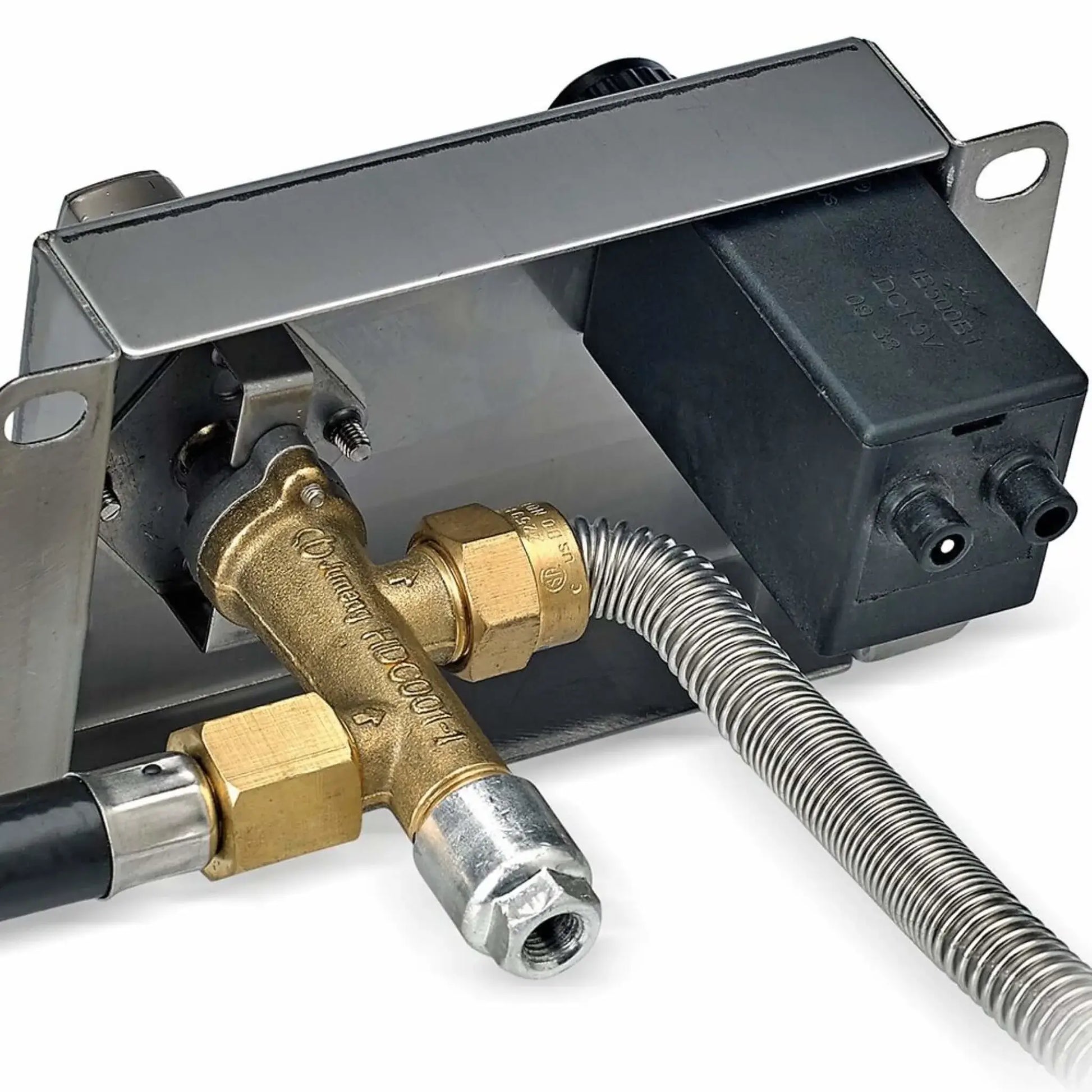

  • Rear view of the American Fire Products CSA-certified EIPS control panel showing the stainless steel mounting bracket, brass gas valve assembly, flexible gas line, electrical ignition module, and connection ports used for safe electronic ignition fire pit operation.

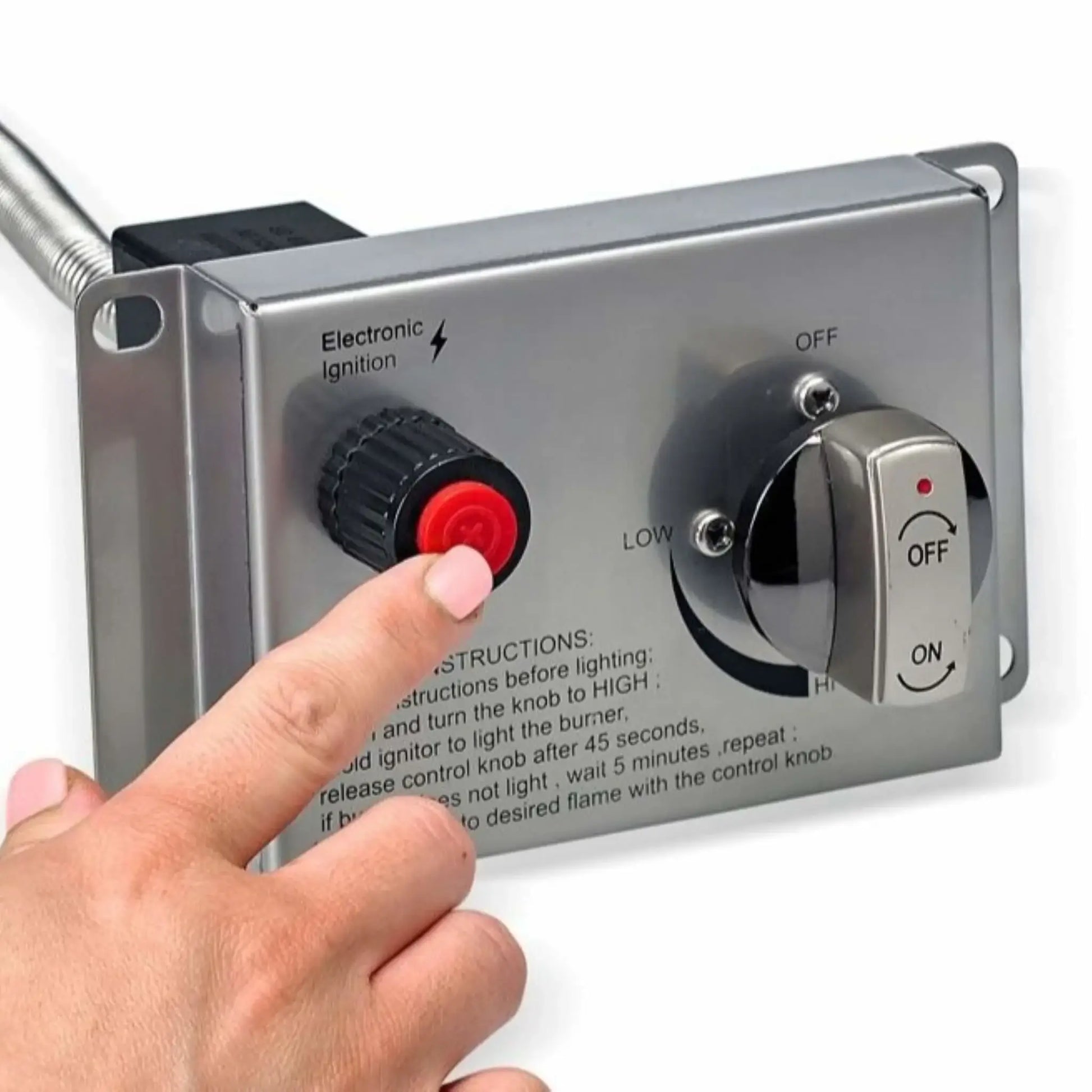

  • Close-up image of a stainless steel fire pit control panel with a hand pressing the red electronic ignition button next to the gas control knob. The panel displays labeled ignition and flame adjustment settings, demonstrating how the CSA-certified fire feature is manually ignited and controlled for safe outdoor operation.

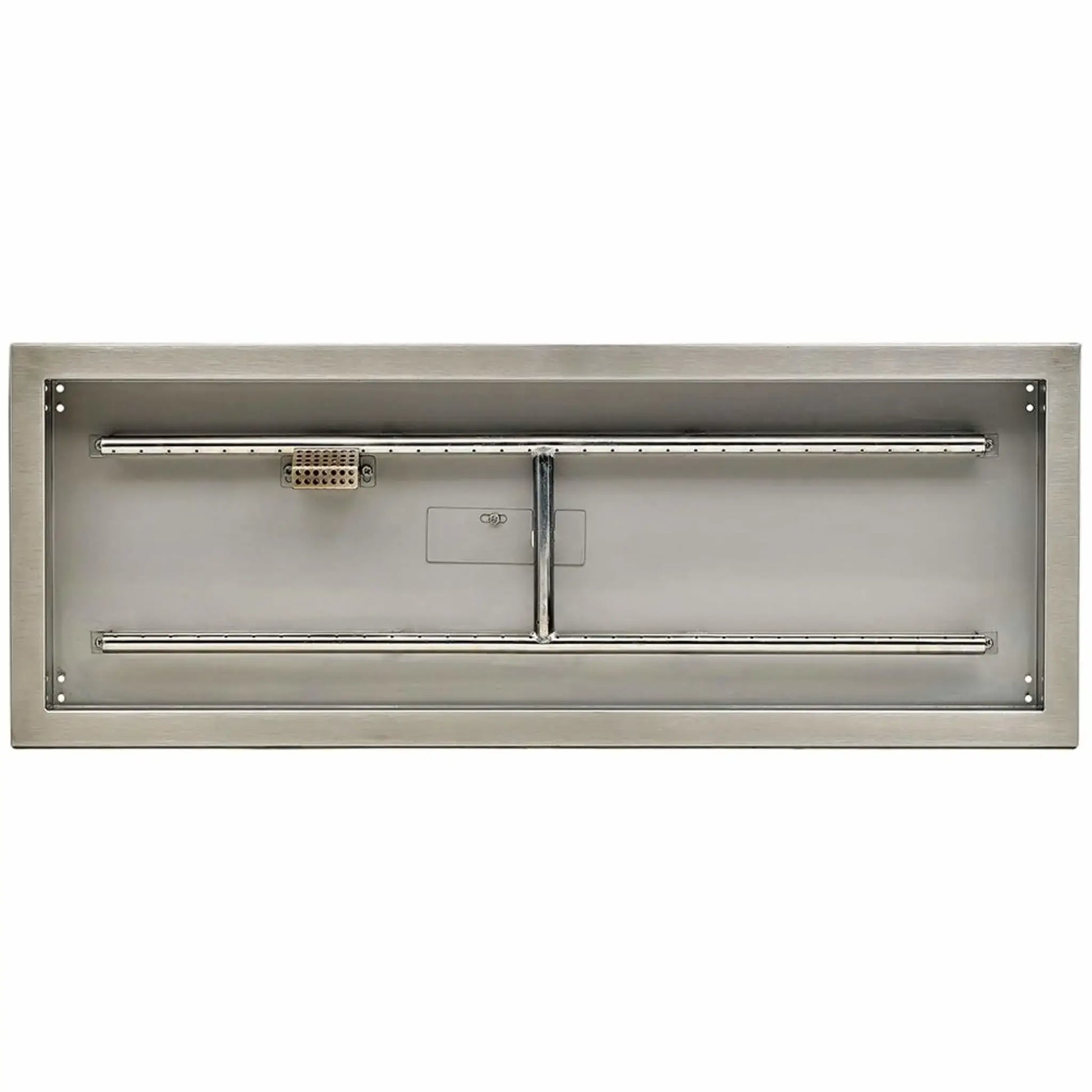

  • Top-down view of a rectangular stainless steel fire pit pan showing the full linear burner layout, ignitor housing, and clean welded edges designed for drop-in fire pit installations.

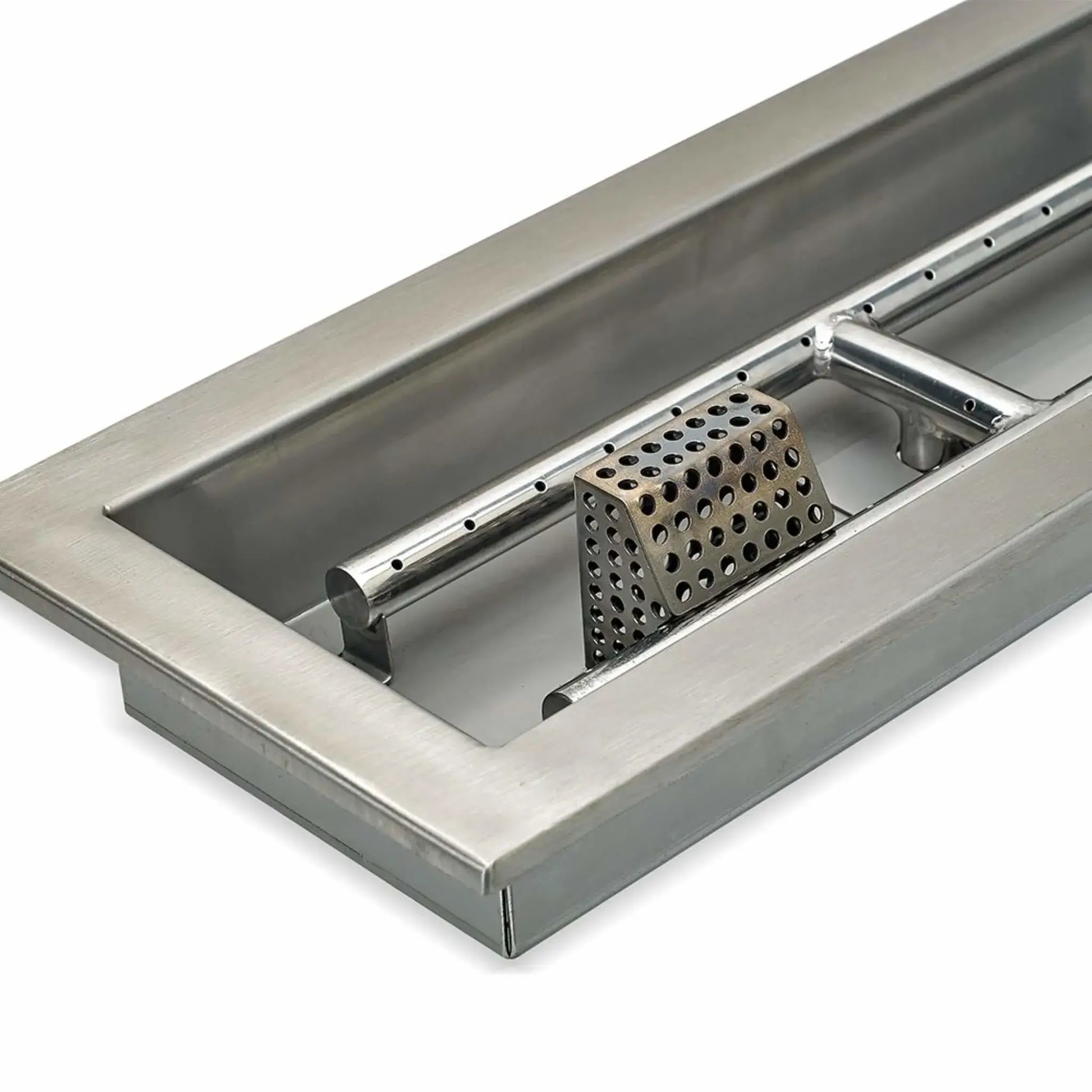

  • Close-up detail of a stainless steel rectangular fire pit pan highlighting the brushed metal finish, clean welds, and precision-cut edges of the drop-in fire pit design.

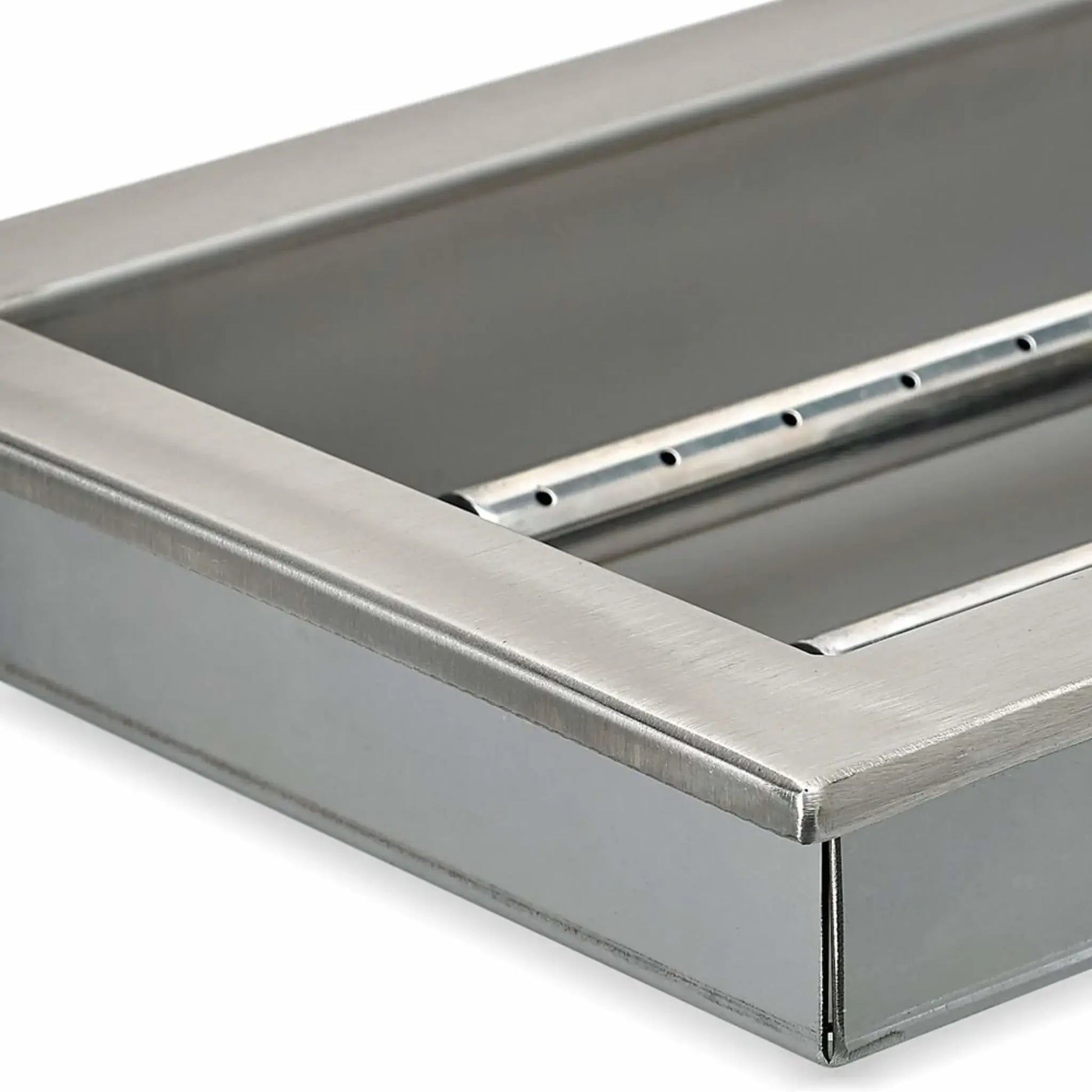

  • Angled close-up of a stainless steel fire pit pan showing the interior burner rail, reinforced pan walls, and smooth brushed steel surface used in outdoor fire pit systems.

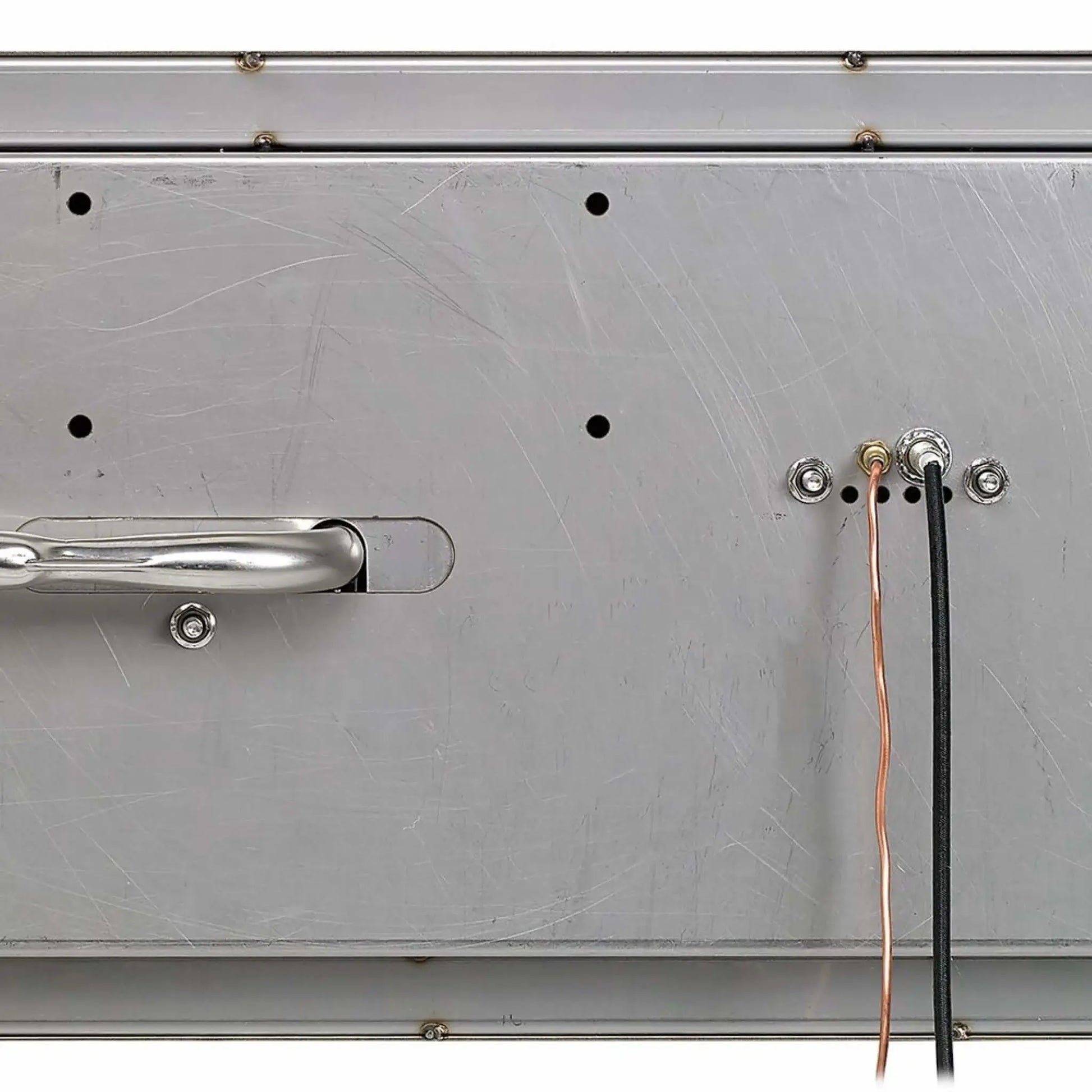

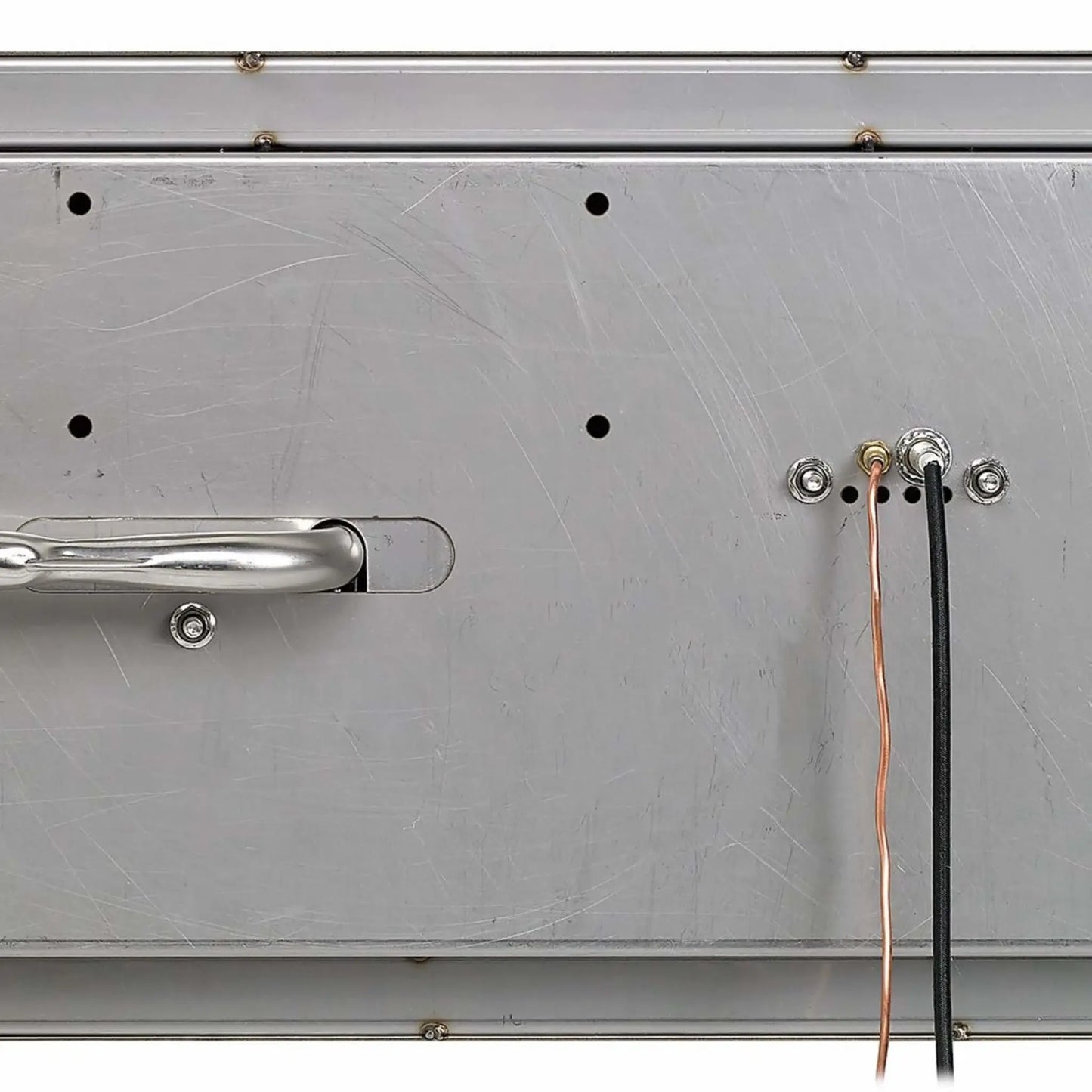

  • Bottom view of a stainless steel linear drop-in fire pit pan showing the underside construction, mounting hardware points, and gas and ignition line connections. The image highlights the reinforced stainless steel base, pre-drilled access holes, and wiring ports used for CSA-certified installation in outdoor fire features.

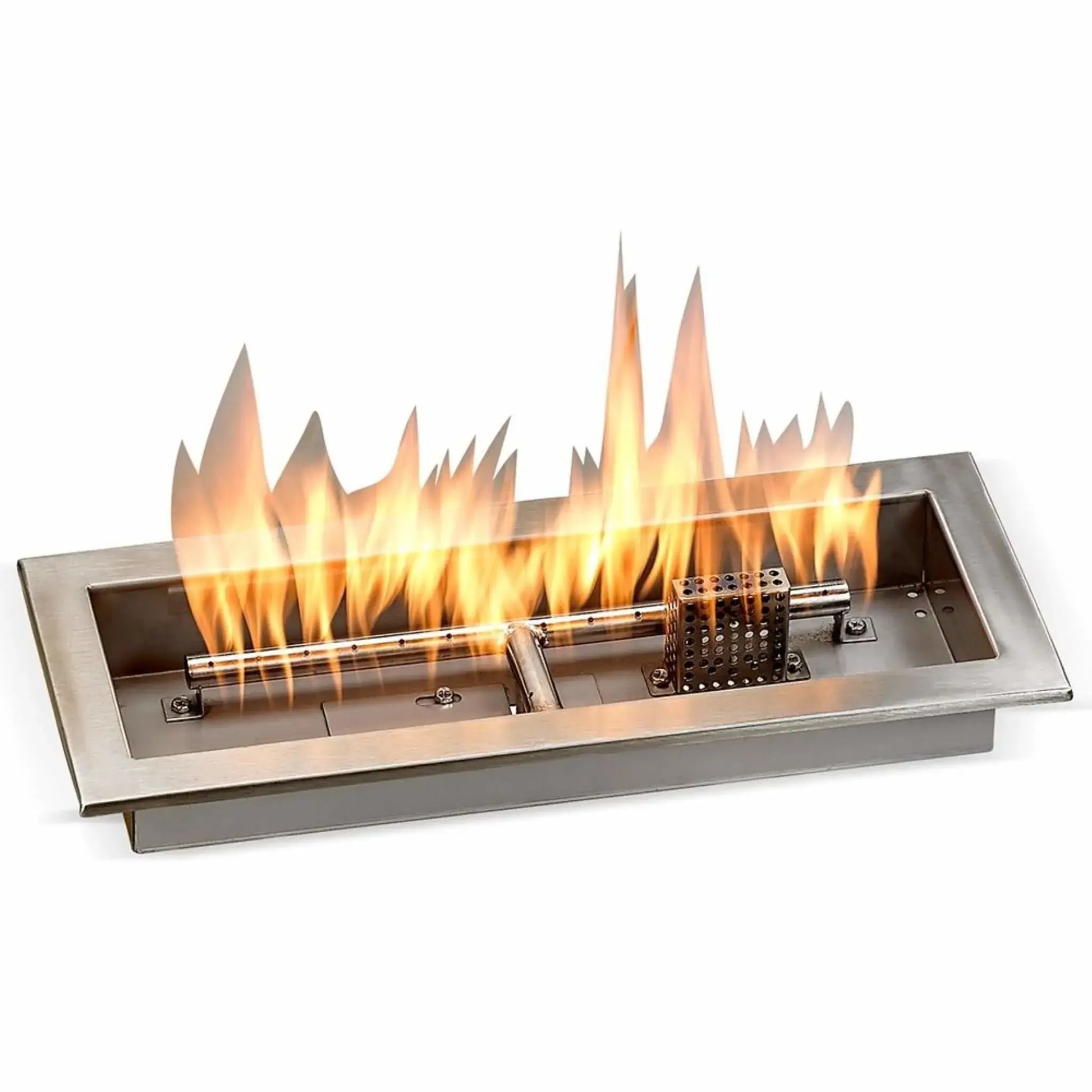

  • Stainless steel rectangular fire pit pan with active flames rising evenly across the linear burner, demonstrating flame pattern and heat output in an 18 by 6 inch propane fire pit insert.

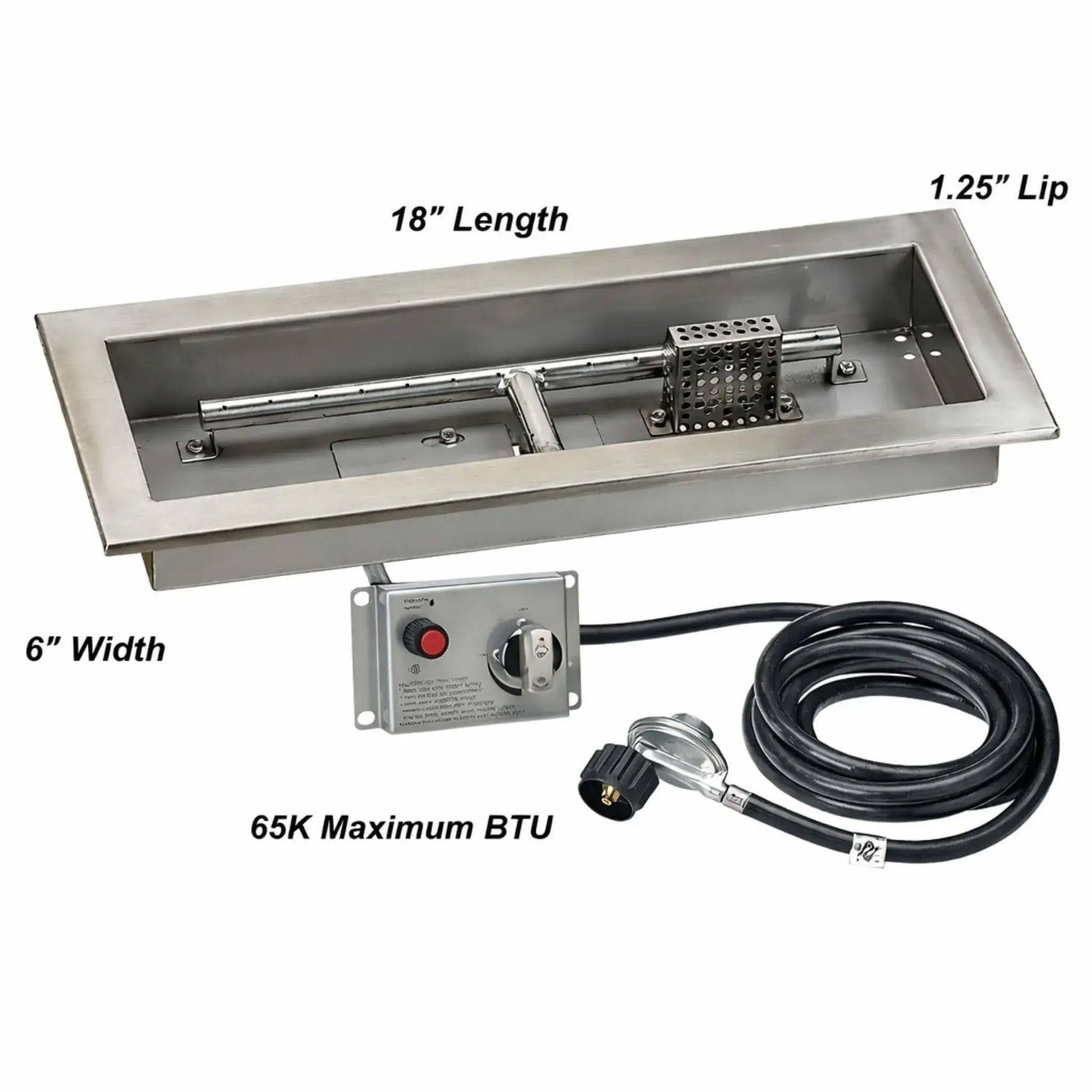

  • Dimension diagram of an 18-inch by 6-inch stainless steel rectangular drop-in fire pit pan showing overall length, width, raised 1.25-inch lip, internal burner layout, and a 65,000 BTU CSA-certified ignition system with control panel and gas hose.

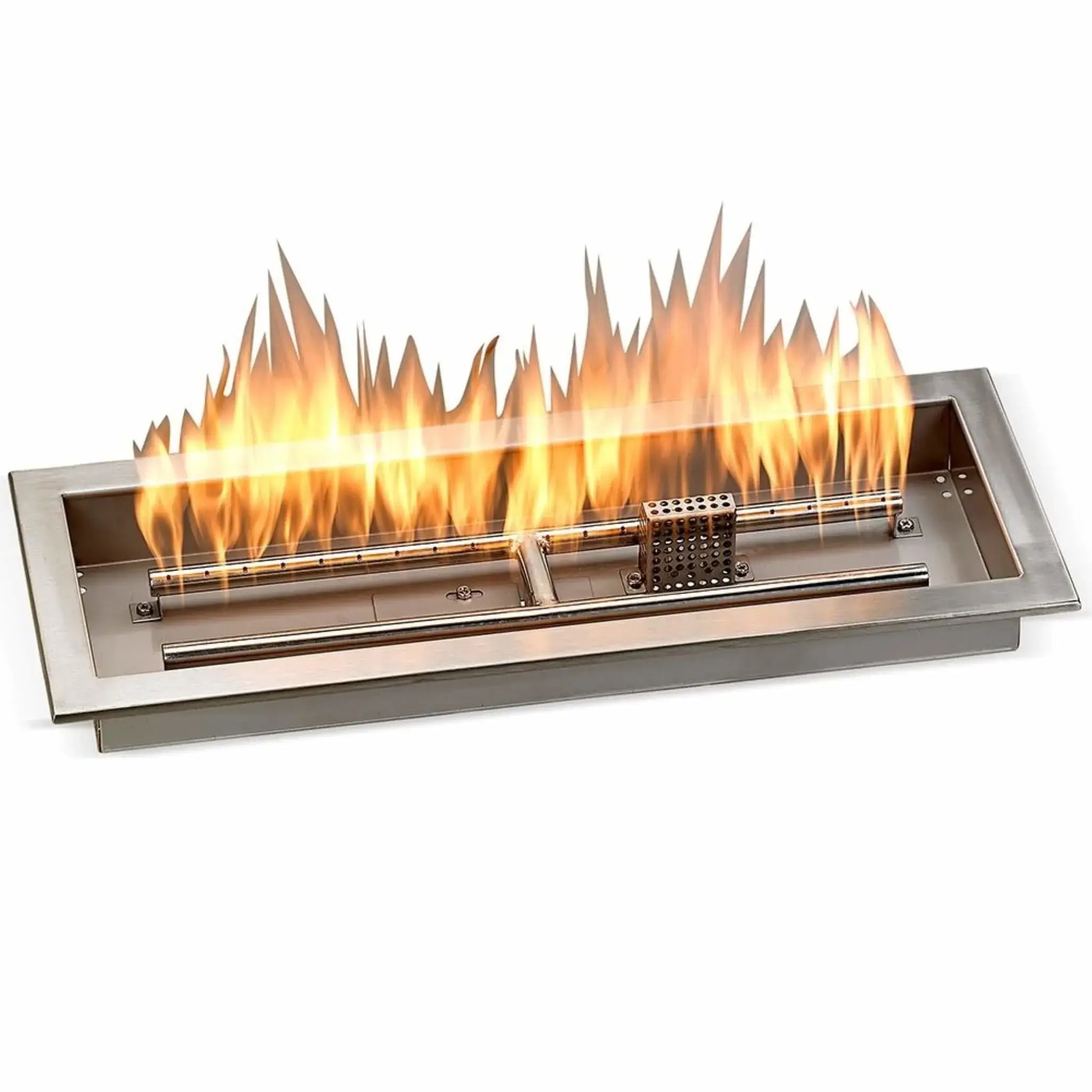

  • Rectangular 24-inch by 8-inch stainless steel drop-in fire pit pan shown lit with a steady linear flame, featuring a brushed steel finish, raised installation lip, internal burner tube, and perforated flame guard producing an even fire pattern.

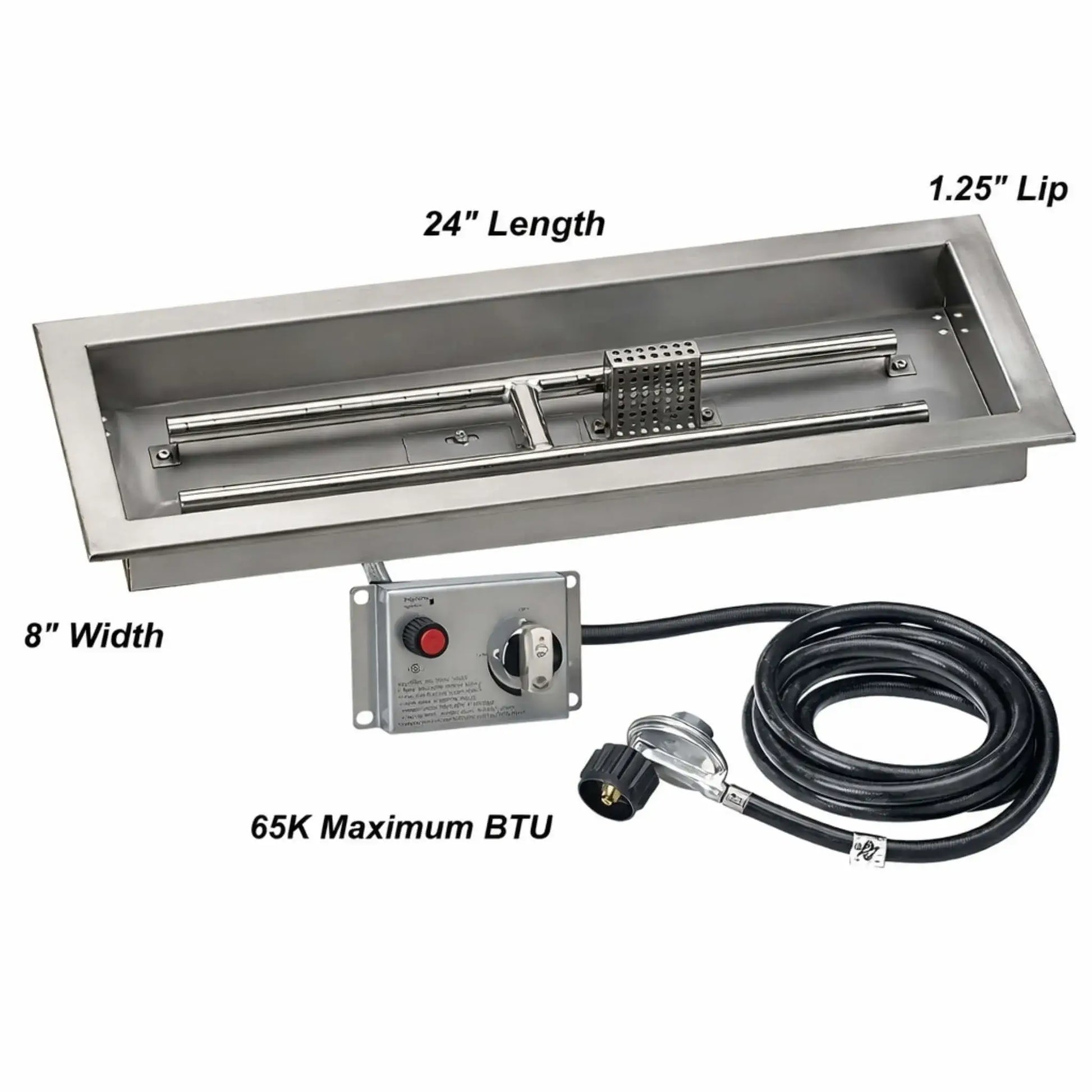

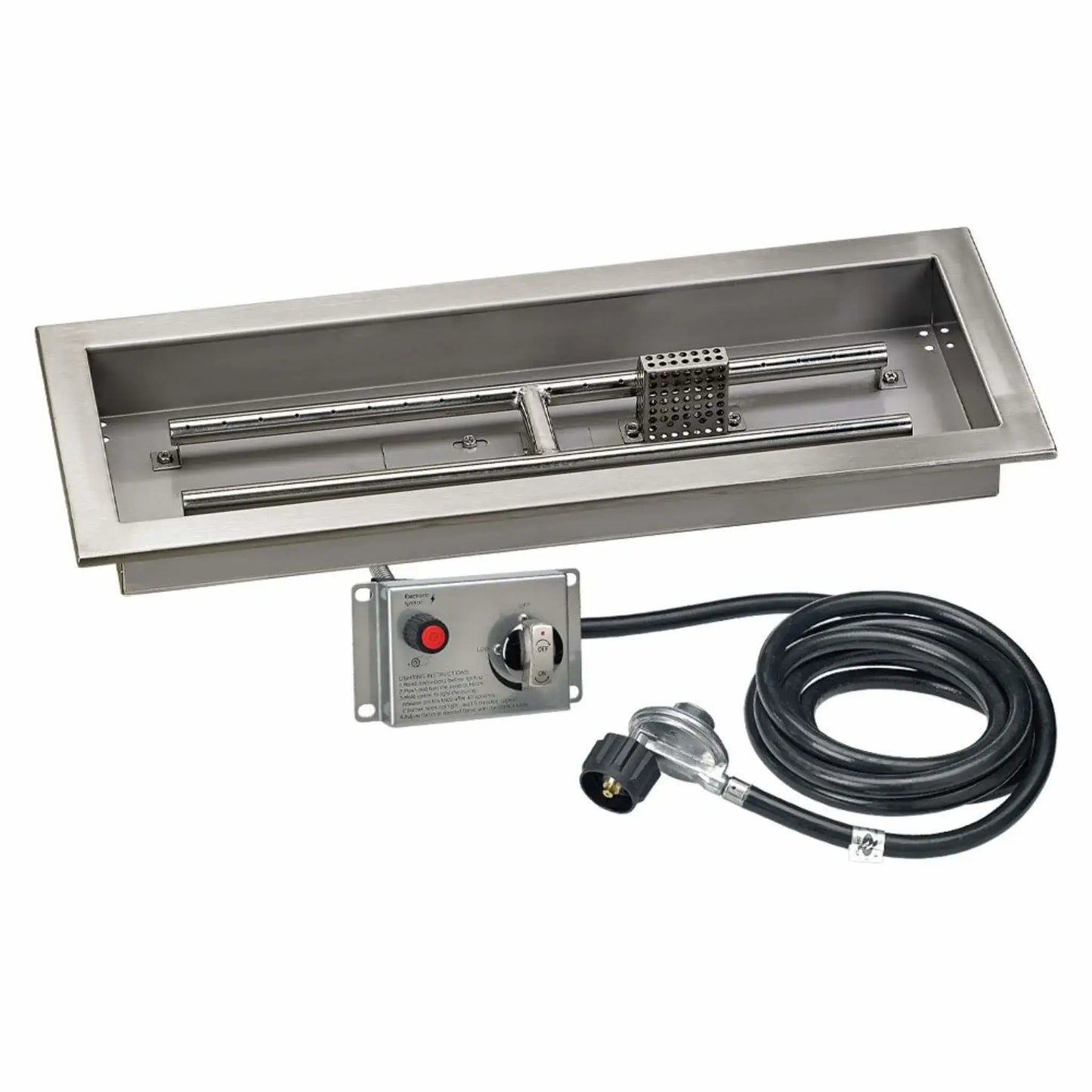

  • Technical dimension image of a 24-inch by 8-inch rectangular stainless steel fire pit pan featuring a raised installation lip, linear burner tube, flame guard, electronic ignition control panel, and a 65,000 BTU CSA-certified gas system.

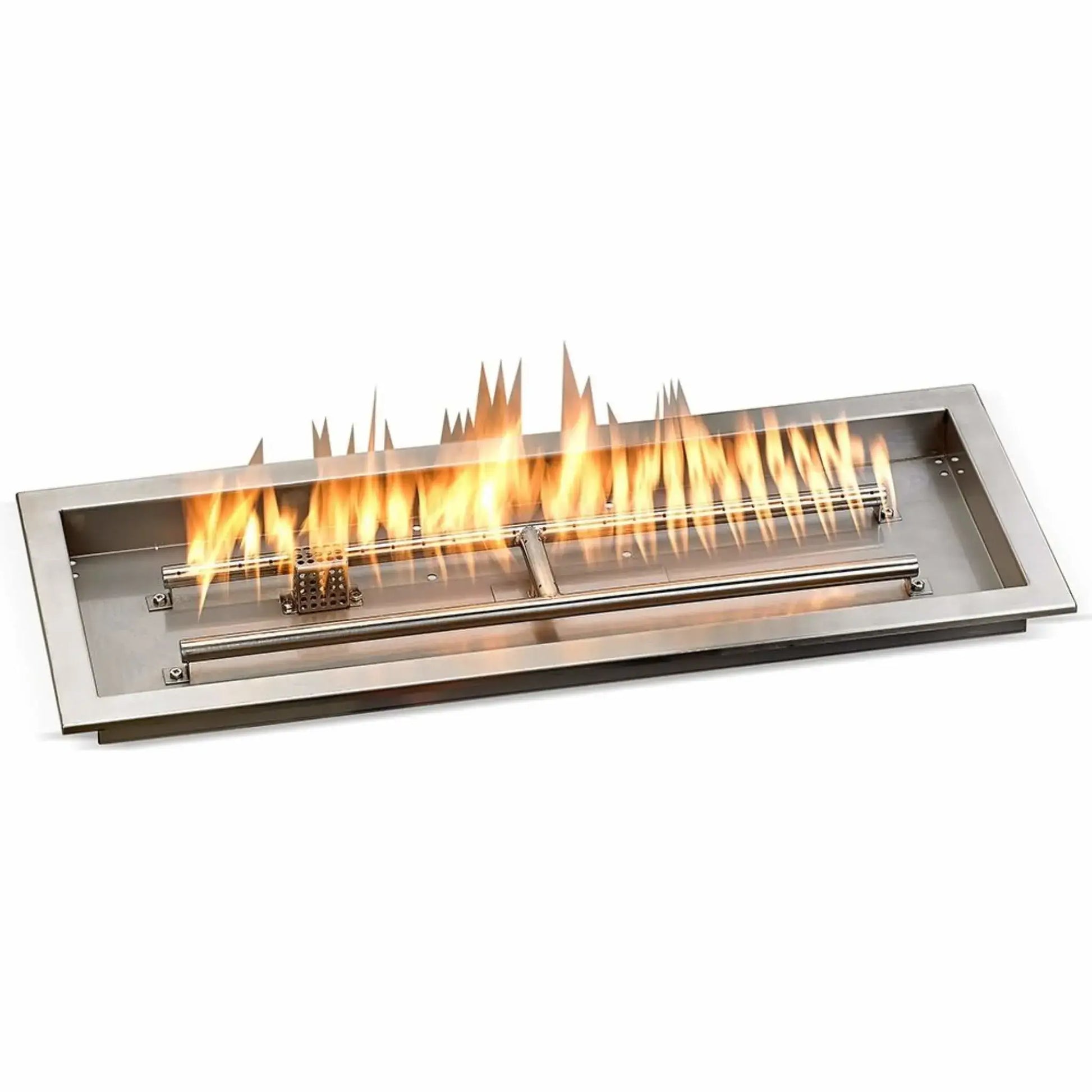

  • 30-inch by 10-inch stainless steel rectangular fire pit pan operating with tall, bright flames across the linear burner, highlighting the clean modern design, smooth steel edges, and consistent flame distribution inside the drop-in fire pit pan.

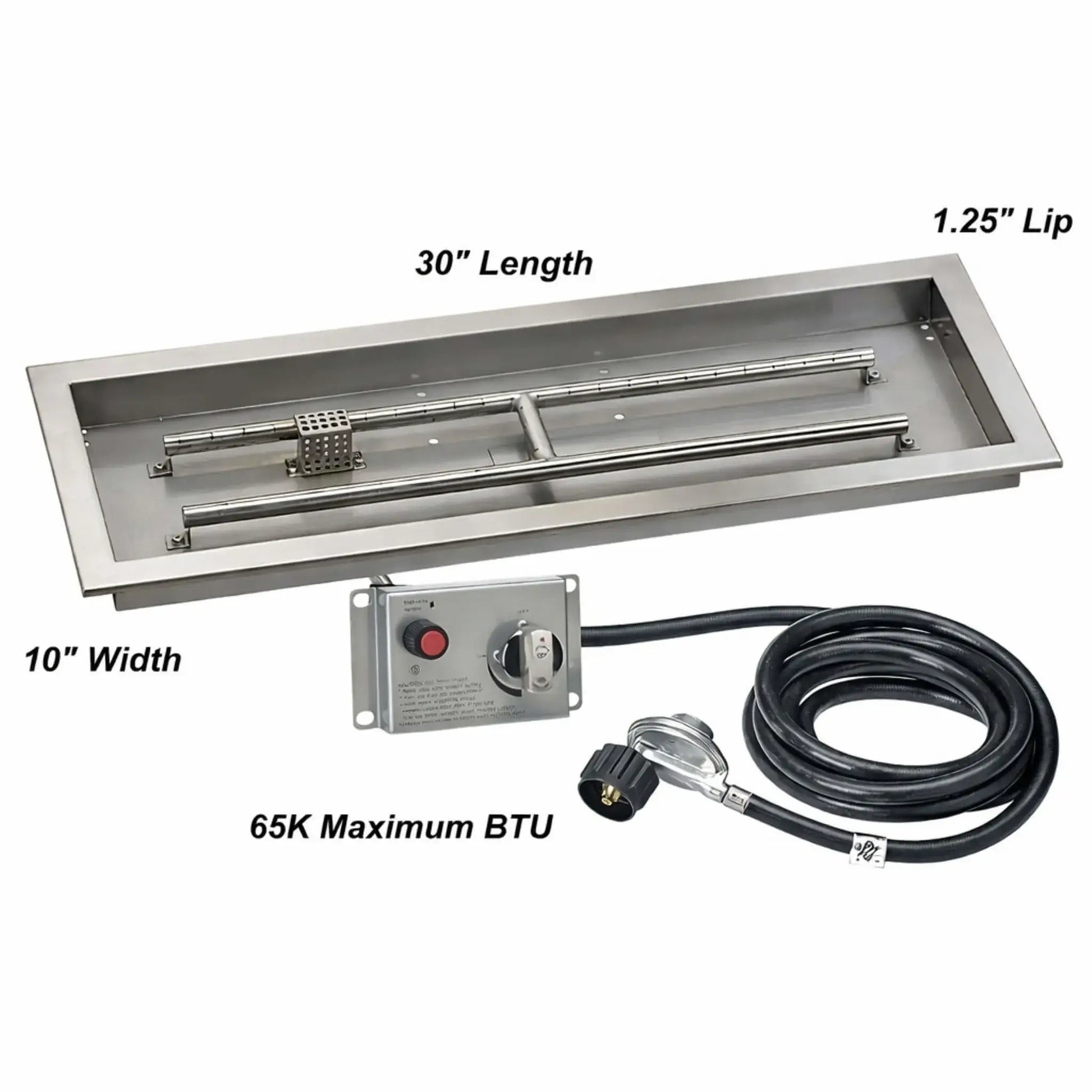

  • Measurement diagram for a 30 by 10 inch rectangular stainless steel fire pit pan, detailing burner position, pan depth, and drop-in lip dimensions.

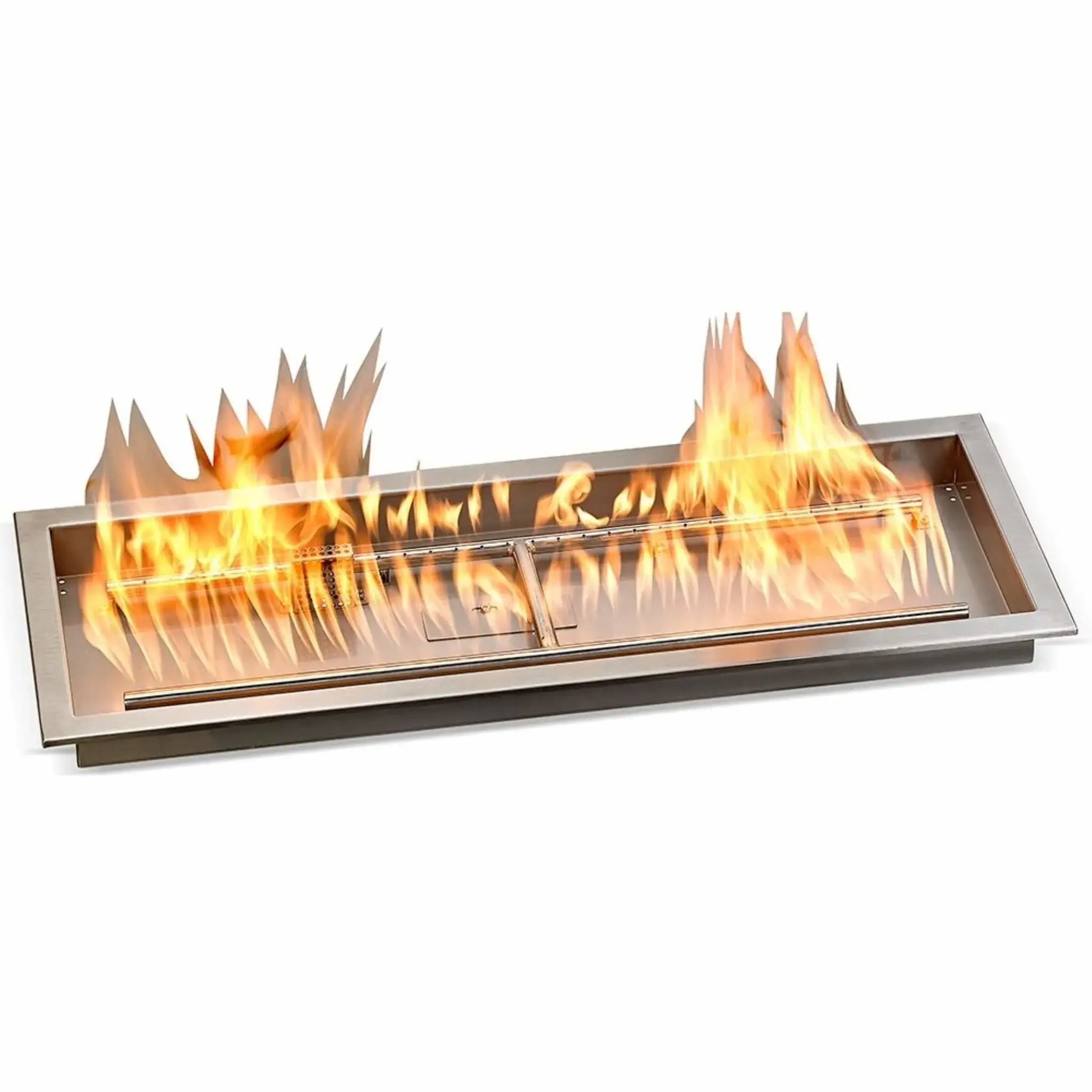

  • 36-inch by 12-inch stainless steel drop-in fire pit pan shown in use with a full linear flame display, showcasing the long burner assembly, centered flame guard, and professional-grade construction designed for outdoor fire pit installations.

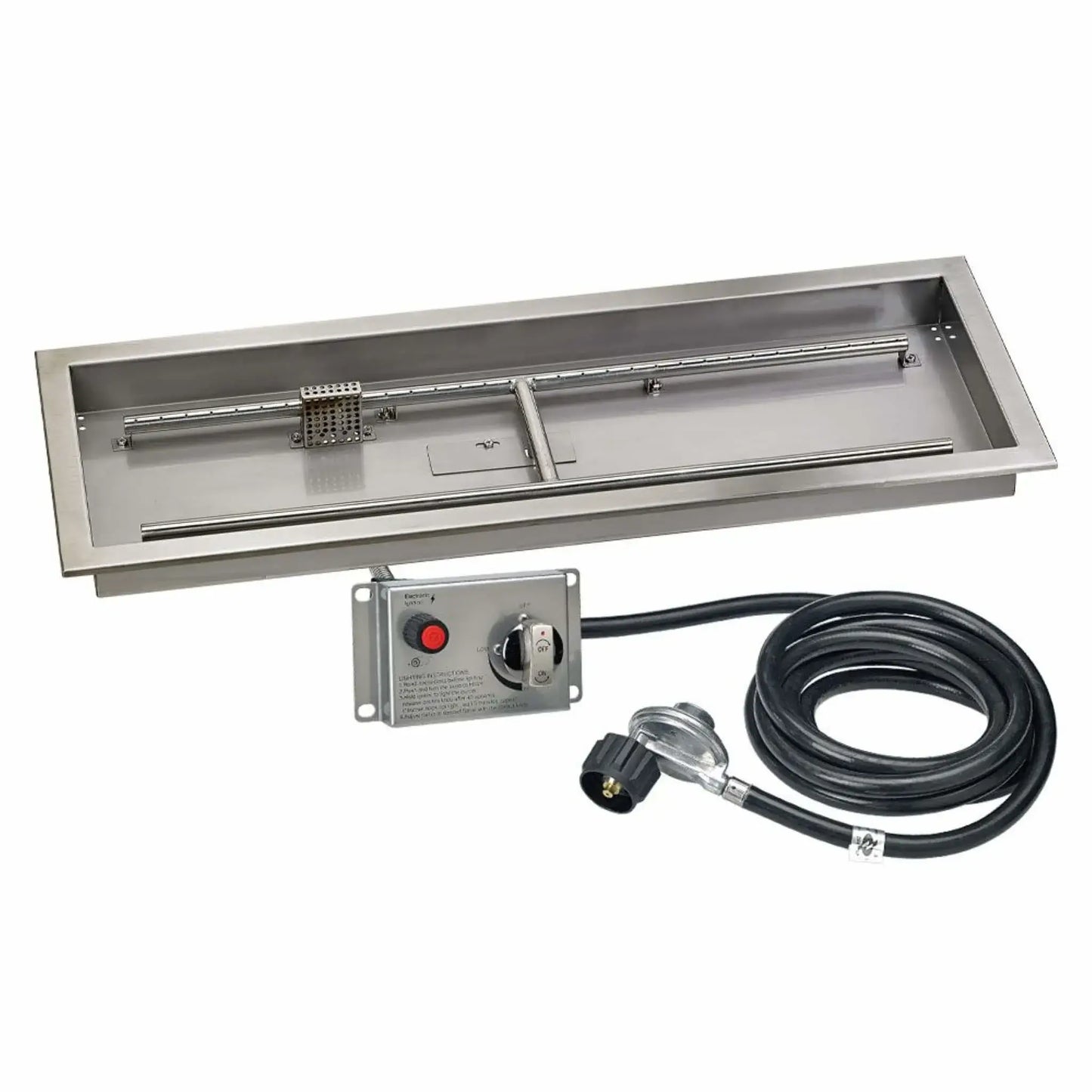

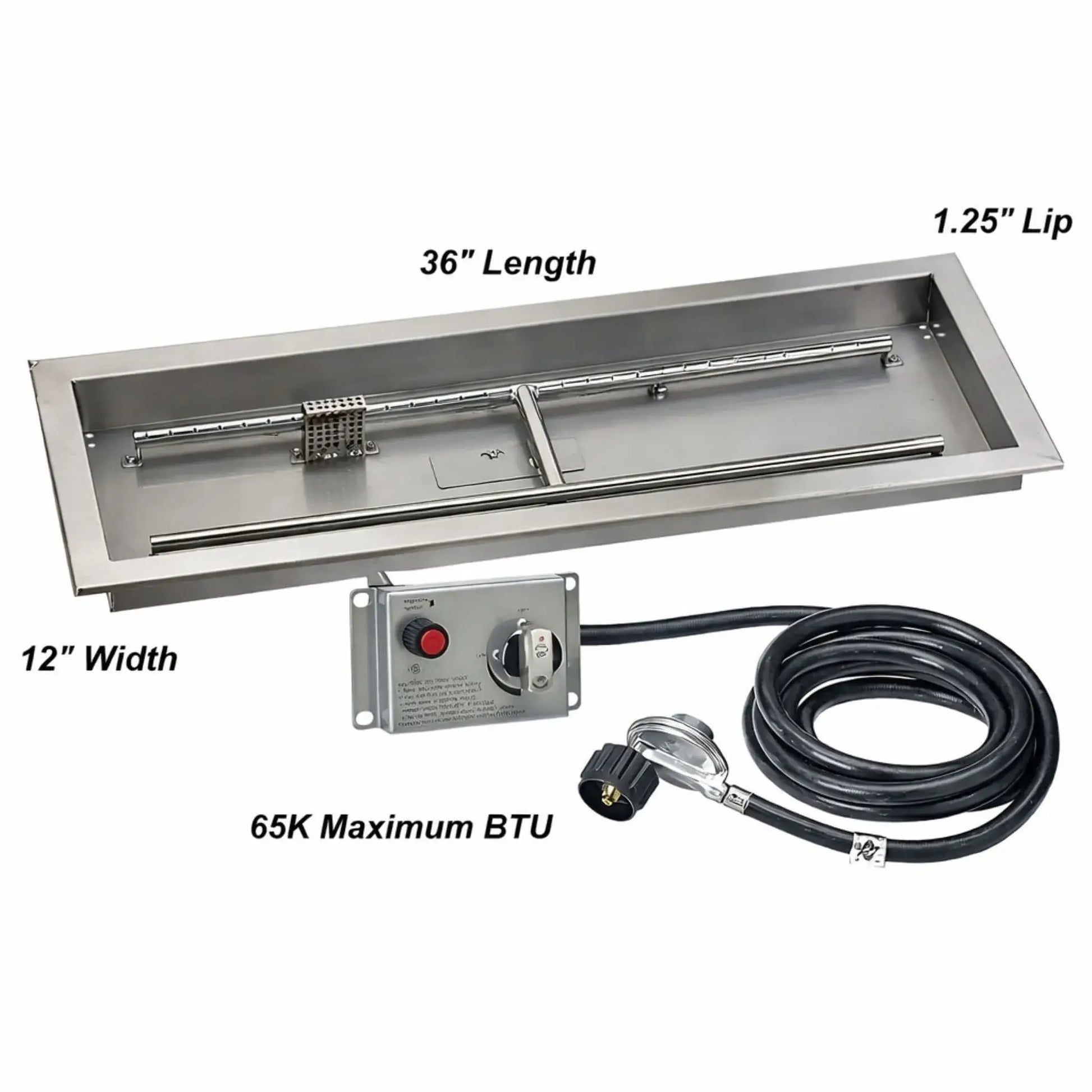

  • Installation dimension guide for a 36 by 12 inch stainless steel drop-in fire pit pan, showing overall size, burner alignment, and mounting lip measurements.

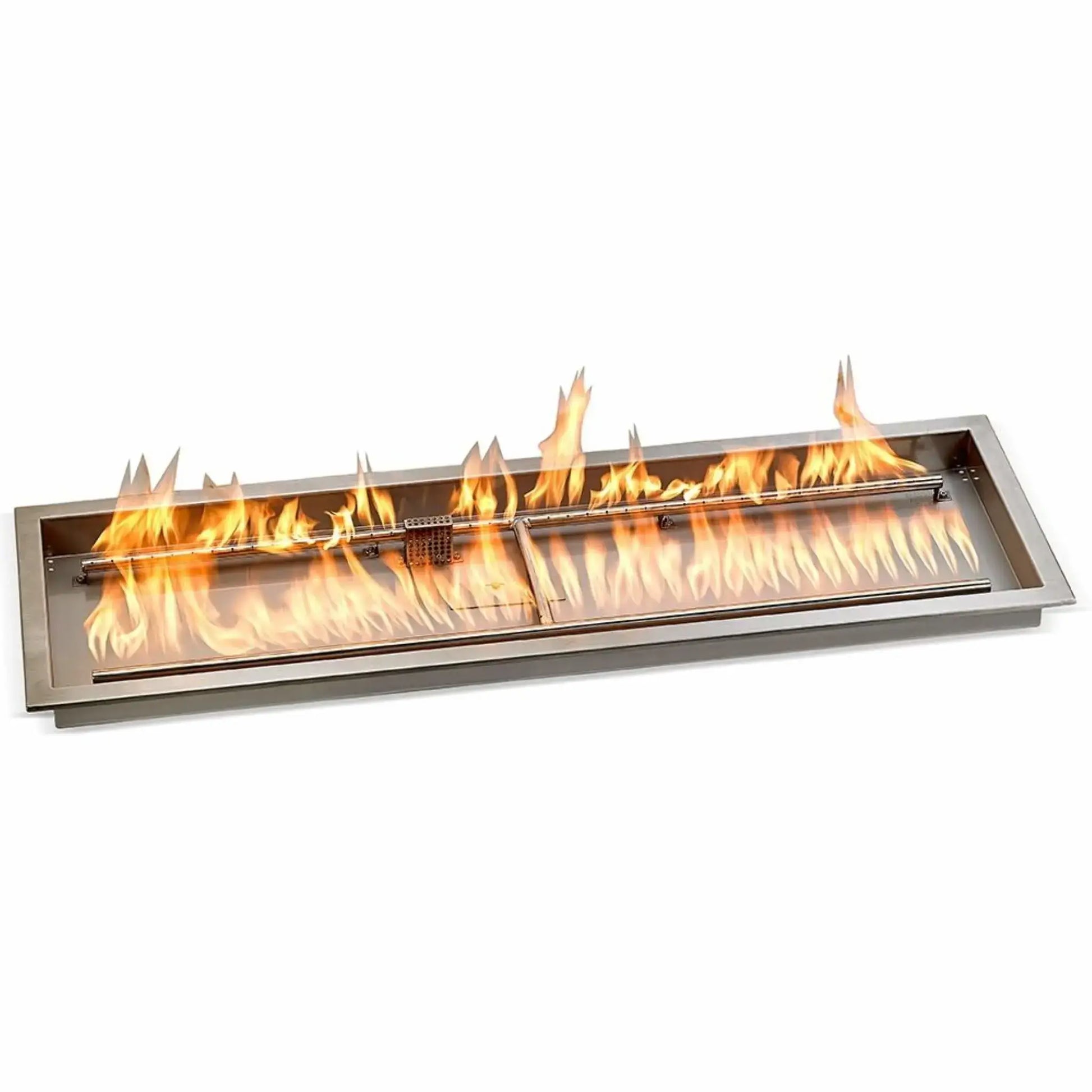

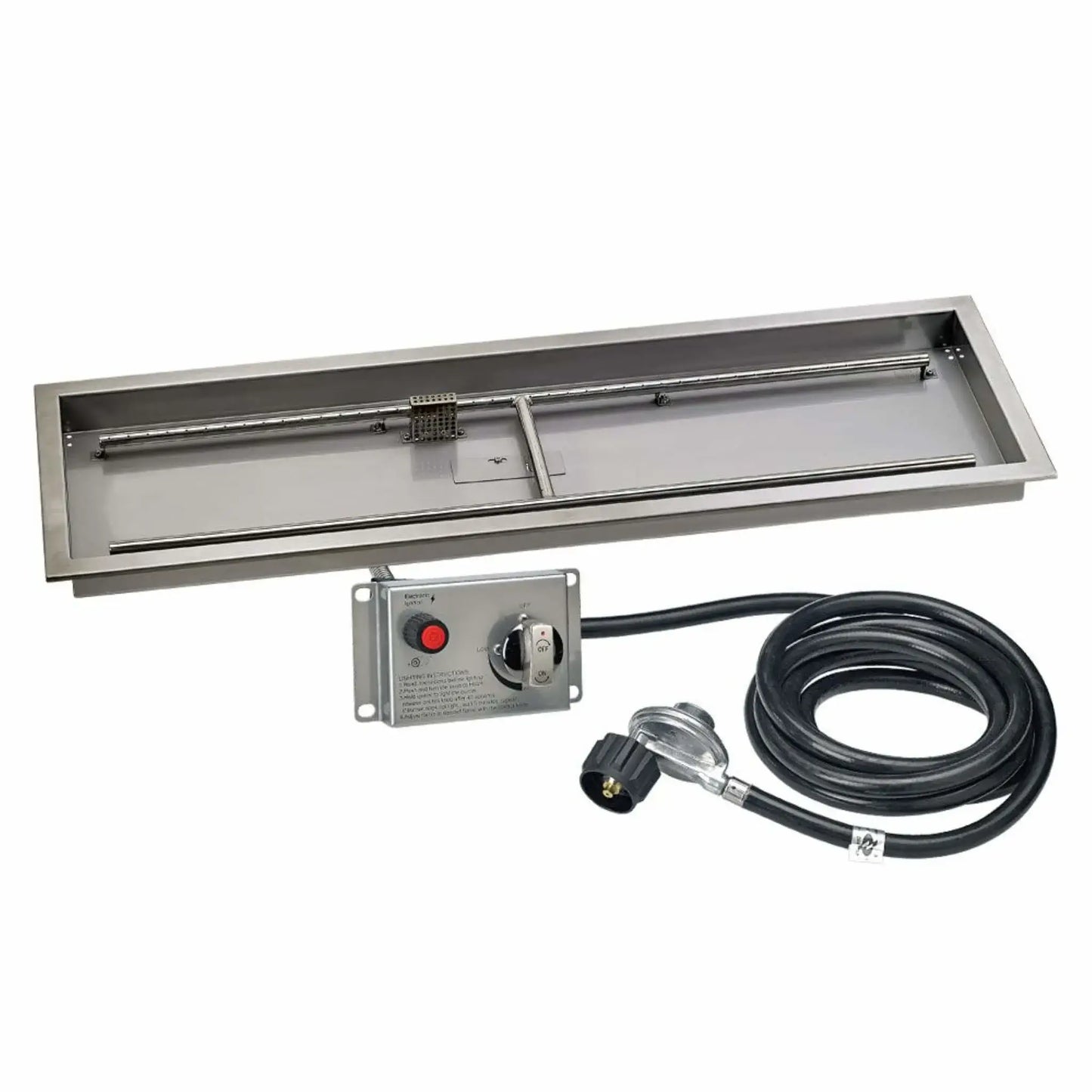

  • Large 48-inch by 14-inch stainless steel rectangular fire pit pan producing an expansive linear flame, emphasizing the extended burner length, high-output fire performance, brushed stainless steel finish, and clean drop-in installation profile.

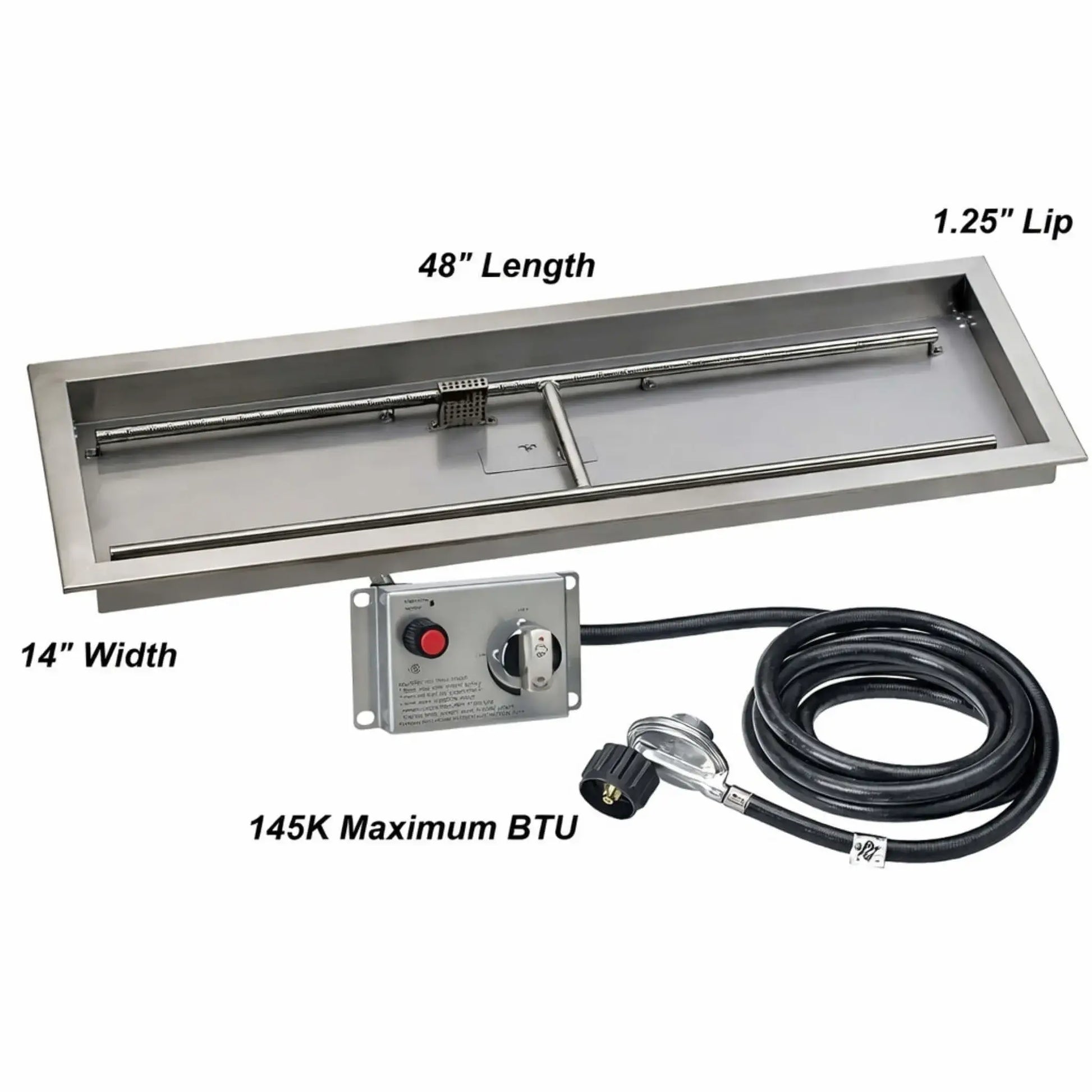

  • Dimensioned product image of a 48-inch by 14-inch stainless steel rectangular fire pit pan featuring a long linear burner, center flame deflector, raised installation lip, electronic ignition control panel, gas hose assembly, and a 145,000 BTU CSA-certified output.
1 20

Rectangle 18" - 48" Stainless Steel Drop-In Pan Kit with CSA Safety Certification by American Fire Products

Rectangle 18" - 48" Stainless Steel Drop-In Pan Kit with CSA Safety Certification by American Fire Products

Ships in: 1-3 Business Days

SS-AFPP-18EIPS

Size
$824.24 USD
$1,098.99 USD $824.24 USD
Sale Sold out
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

  • CSA Certified Ignition for Propane Gas.

*NATURAL GAS AVAILABLE; Ask for details.

Specifications

Length:

  • 18" ID ( +1.25" Lip)
  • 24" ID ( +1.25" Lip)
  • 30" ID ( +1.25" Lip)
  • 36" ID ( +1.25" Lip)
  • 48" ID ( +1.25" Lip)

Width:

  • 6" ID ( +1.25" Lip)
  • 8" ID ( +1.25" Lip)
  • 10" ID ( +1.25" Lip)
  • 12" ID ( +1.25" Lip)
  • 14" ID ( +1.25" Lip)

Height: 2.5" - 3"

Weight: 13 lbs - 35 lbs

Material/Finish: Stainless Steel

Fuel Type: Propane Gas

*Natural Gas Available Upon Request

Heat Output: Up to 65K - 145K BTUs

Ignition Type: Push Button Battery Powered w/Thermocouple ignition

Certification: CSA Certification

Warranty: 5 Year Limited (Stainless Steel Pan, Fire Ring, & Valve Box); 1 Year Limited (Electronics, Gas Valve, & Pilot Assembly)

Assembly: Some Assembly Required

Documents & Downloads

Shipping & Returns

Shipping:

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 15% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.

Sooting or Blackening:

  • Due to the nature of Gas Burners, Sooting or Blacking seen on media is normal and to be expected. For excessive sooting, please refer to owner's manual attached.

Elevate your outdoor fire feature with the Rectangle Stainless Steel Drop-In Pan Kit with CSA Safety Certification by American Fire Products. Expertly crafted from 100% 304 stainless steel, this hand-crafted pan ensures durability and resistance to the elements, providing a long-lasting centerpiece for your outdoor gatherings.

Designed for both natural gas and propane applications, this drop-in pan kit offers versatility to suit your specific needs. The burner features drilled holes, not punched, to prevent whistling and ensure a serene flame experience. With a heat rating of up to 65,000 BTU/hour (18" - 36" models), it delivers ample warmth and ambiance.

*48" x 14" Model can deliver up to 95,000 BTU/hour (Natural Gas) & 145,000 BTU/hour (Propane Gas)

Safety is paramount; this kit includes flame-sensing technology with a thermocouple auto gas shut-off feature, providing peace of mind during use. The push-button spark ignition system ensures quick and reliable lighting every time.

Key Features:

  • Material: 100% 304 stainless steel, hand-crafted for superior durability.
  • Burner Design: Drilled holes to prevent whistling, ensuring a tranquil flame.
  • Heat Output: Up to 65,000 - 145,000 BTU/hour for substantial warmth.
  • Safety Features: Flame-sensing technology with thermocouple auto gas shut-off.
  • Ignition System: Push-button spark ignition for easy and dependable lighting.
  • Gas Compatibility: Suitable for both natural gas and propane setups.

Enhance your outdoor living space with the Rectangle Stainless Steel Drop-In Pan Kit, combining elegance, functionality, and safety for an exceptional fire pit experience.
