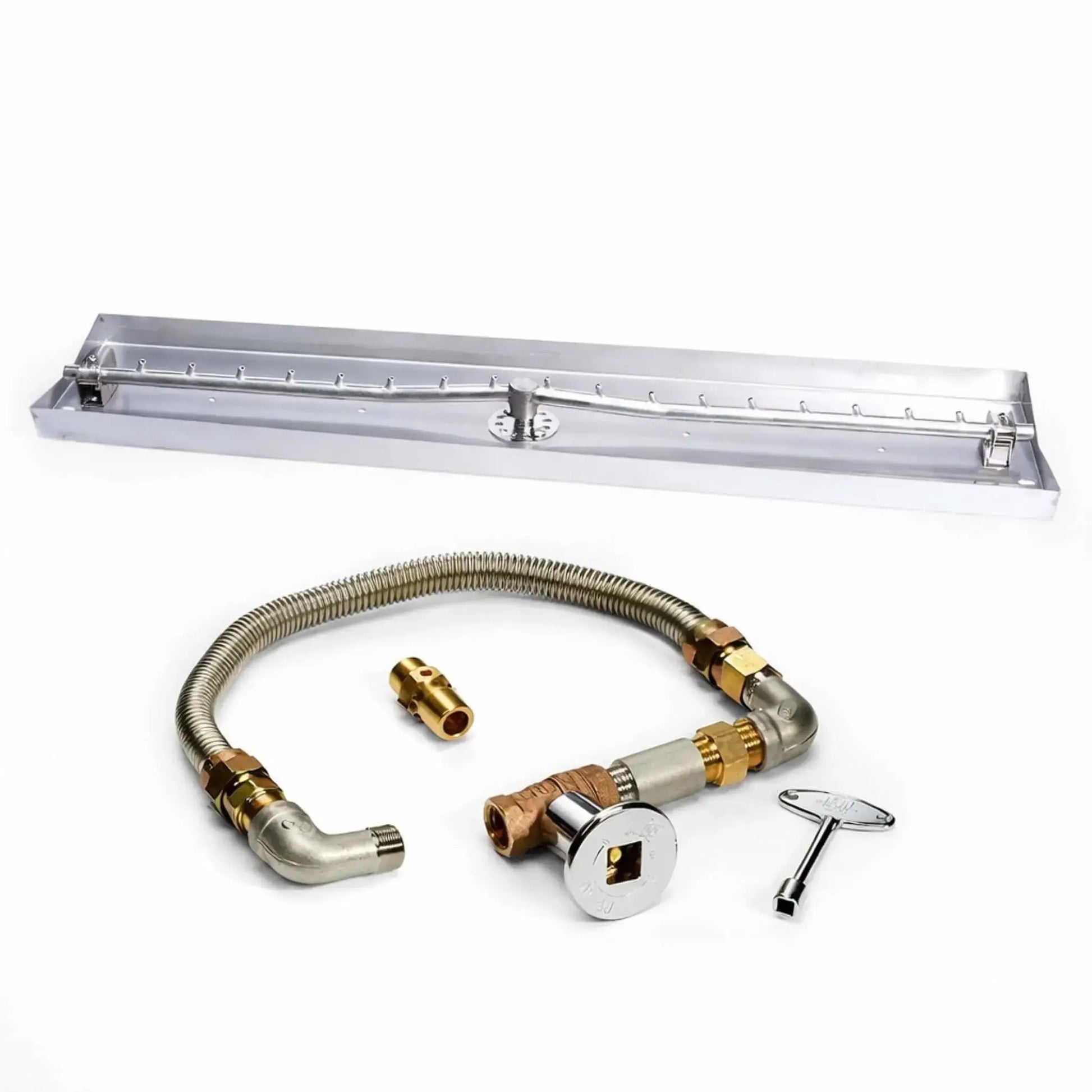

• Hearth Products Controls HPC Fire linear interlink drop in pan with T burner torpedo high capacity match lit ignition kit displayed on a clean white background. Includes stainless steel rectangular burner pan, precision drilled burner tube, flexible gas line, brass fittings, shutoff valve, and ignition key; showcasing complete fire pit installation components.

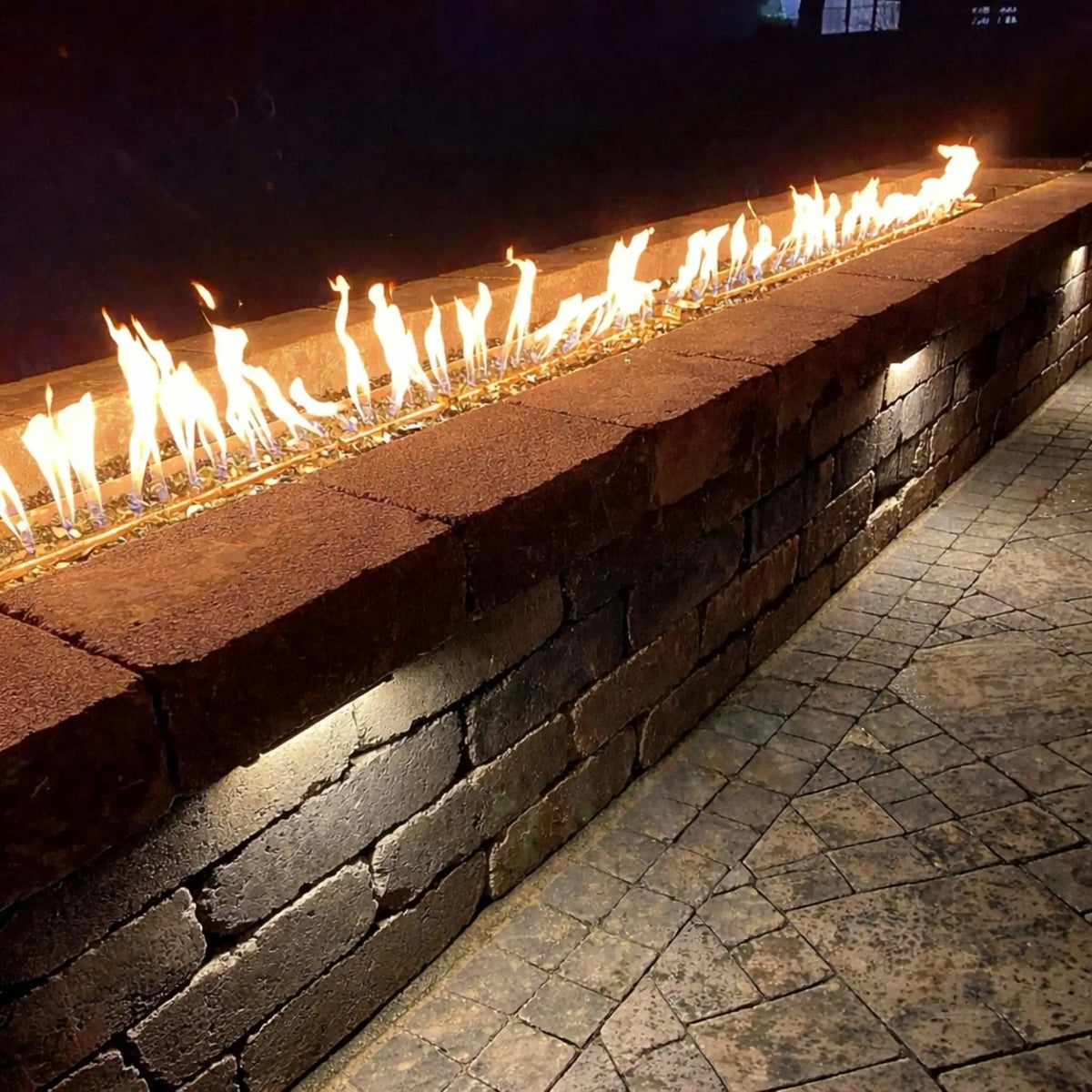

  • Nighttime outdoor installation of HPC Fire Hearth Products Controls torpedo linear interlink burner system built into a long stone wall. Bright linear flames stretch across the fire feature, with under-cap lighting illuminating textured masonry and a paved patio walkway.

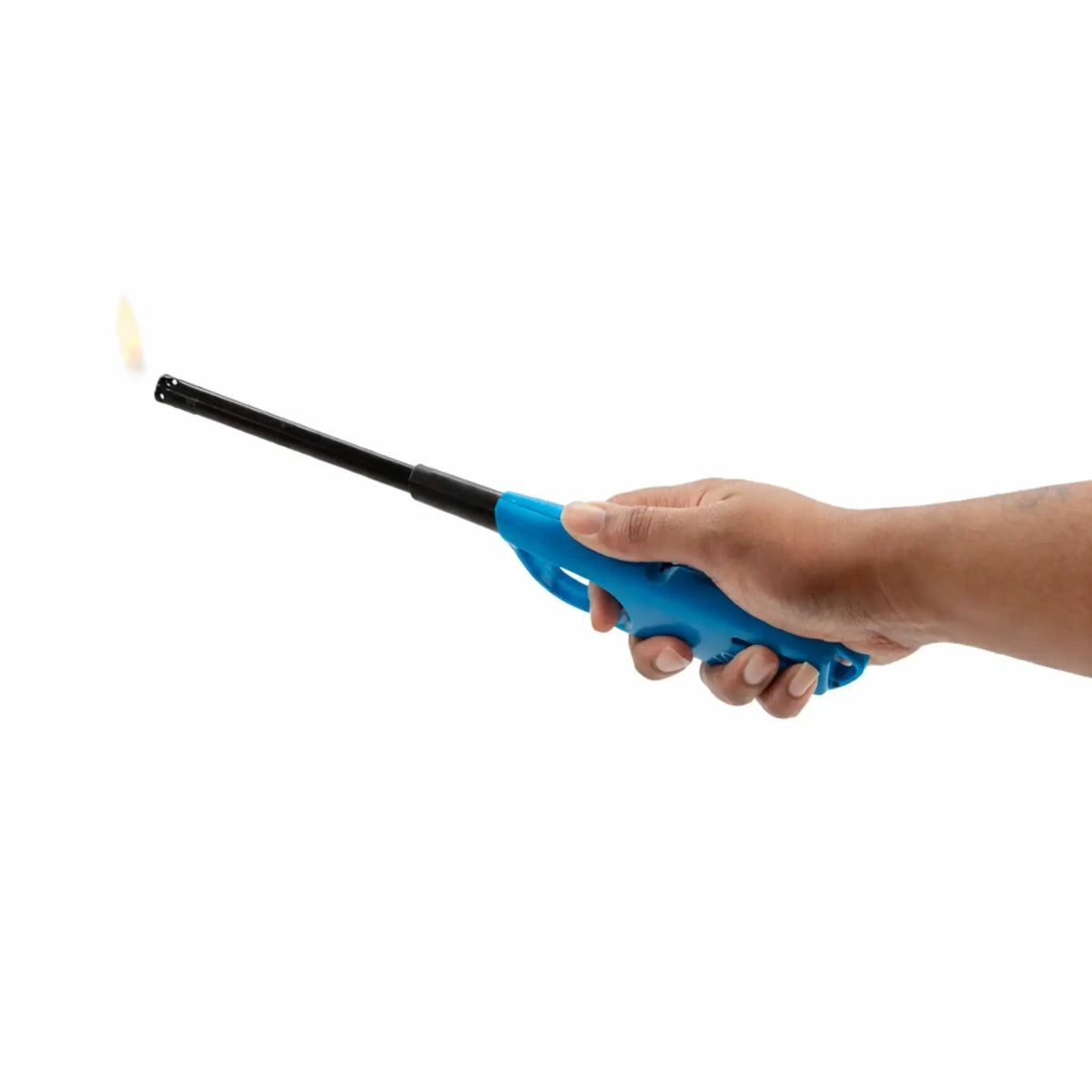

  • Hand holding a blue long-reach butane lighter igniting a small flame at the tip, designed for safely lighting outdoor fire pits, fireplaces, and gas burners. The extended black nozzle allows precise ignition from a distance, making it ideal for match-lit fire pit systems and manual lighting applications.

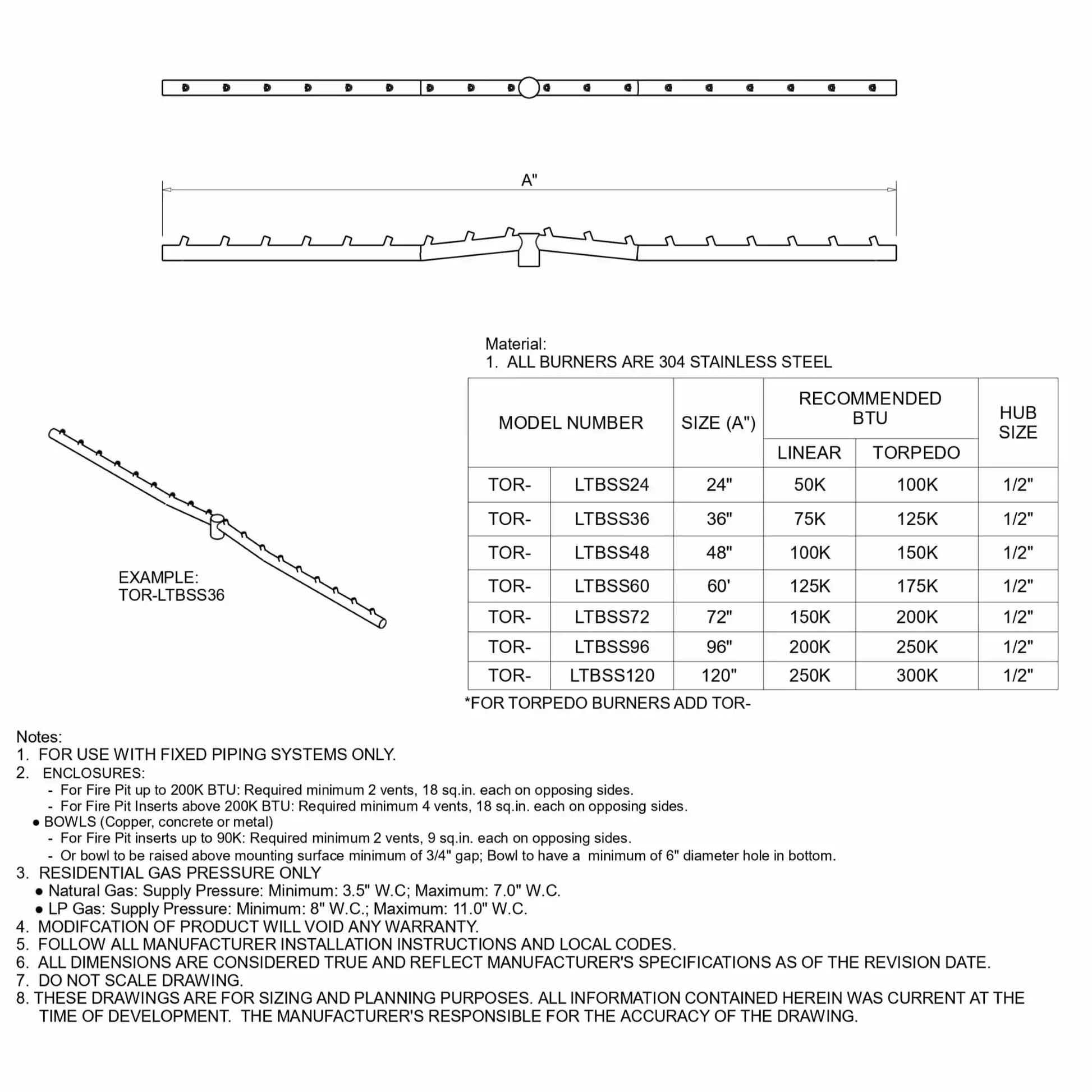

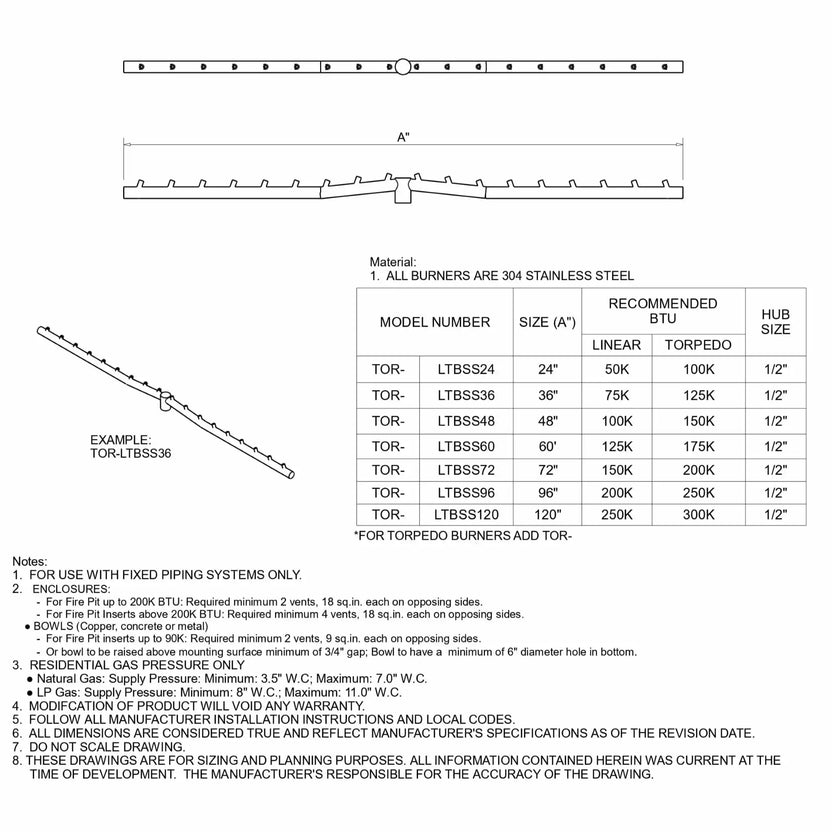

  • Engineering diagram of a torpedo-style linear T burner constructed from 304 stainless steel, featuring burner port layout, center gas inlet, and detailed dimensions. Chart lists sizes from 24 to 120 inches with BTU ratings for linear and torpedo configurations, hub size, and venting requirements for fire pit installations.

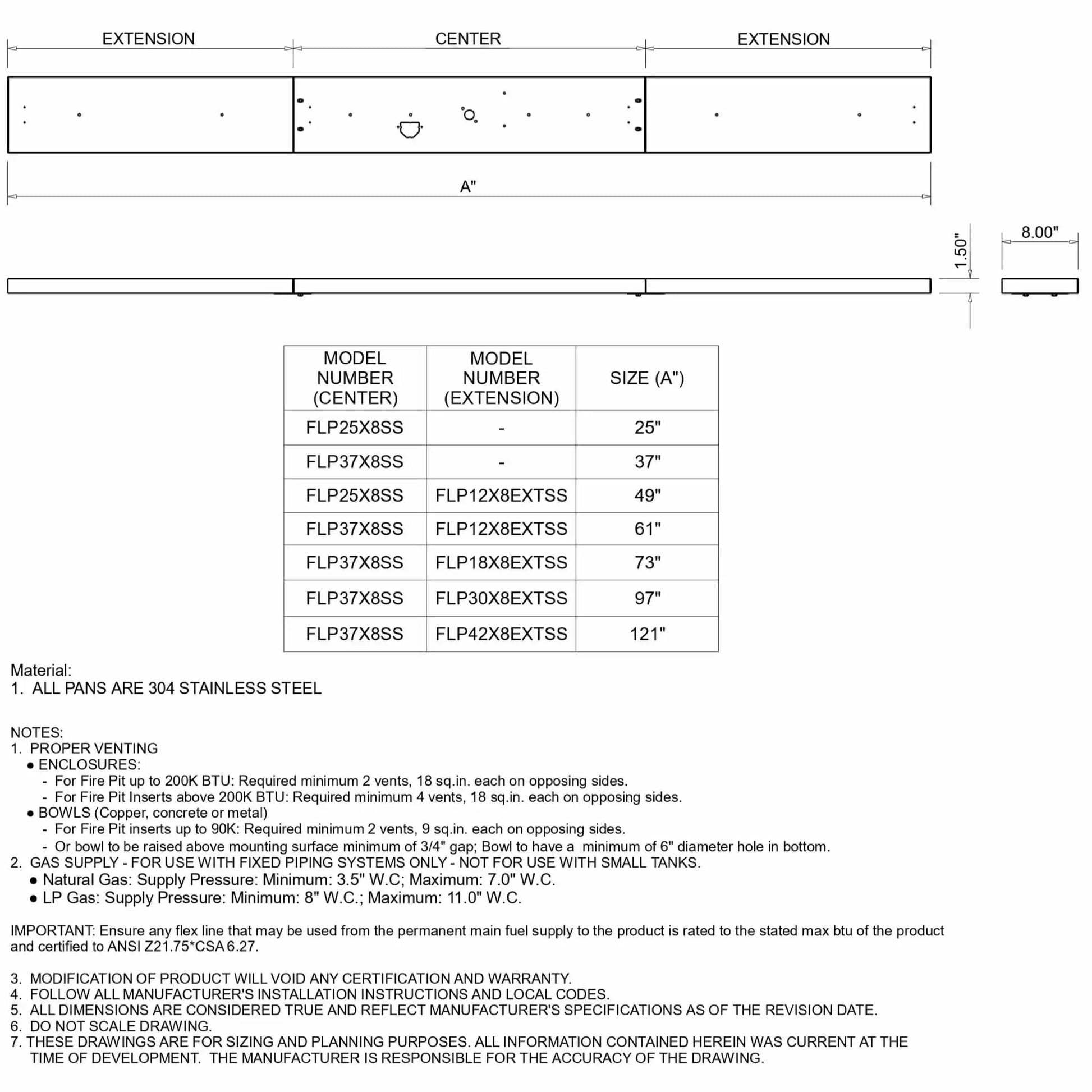

  • Technical specification sheet for a linear fire pit burner pan system, showing dimensional drawings, extension configurations, and model number options. Includes detailed sizing chart, material notes indicating 304 stainless steel construction, venting requirements, gas pressure specifications, and installation guidelines for safe and compliant fire feature design.

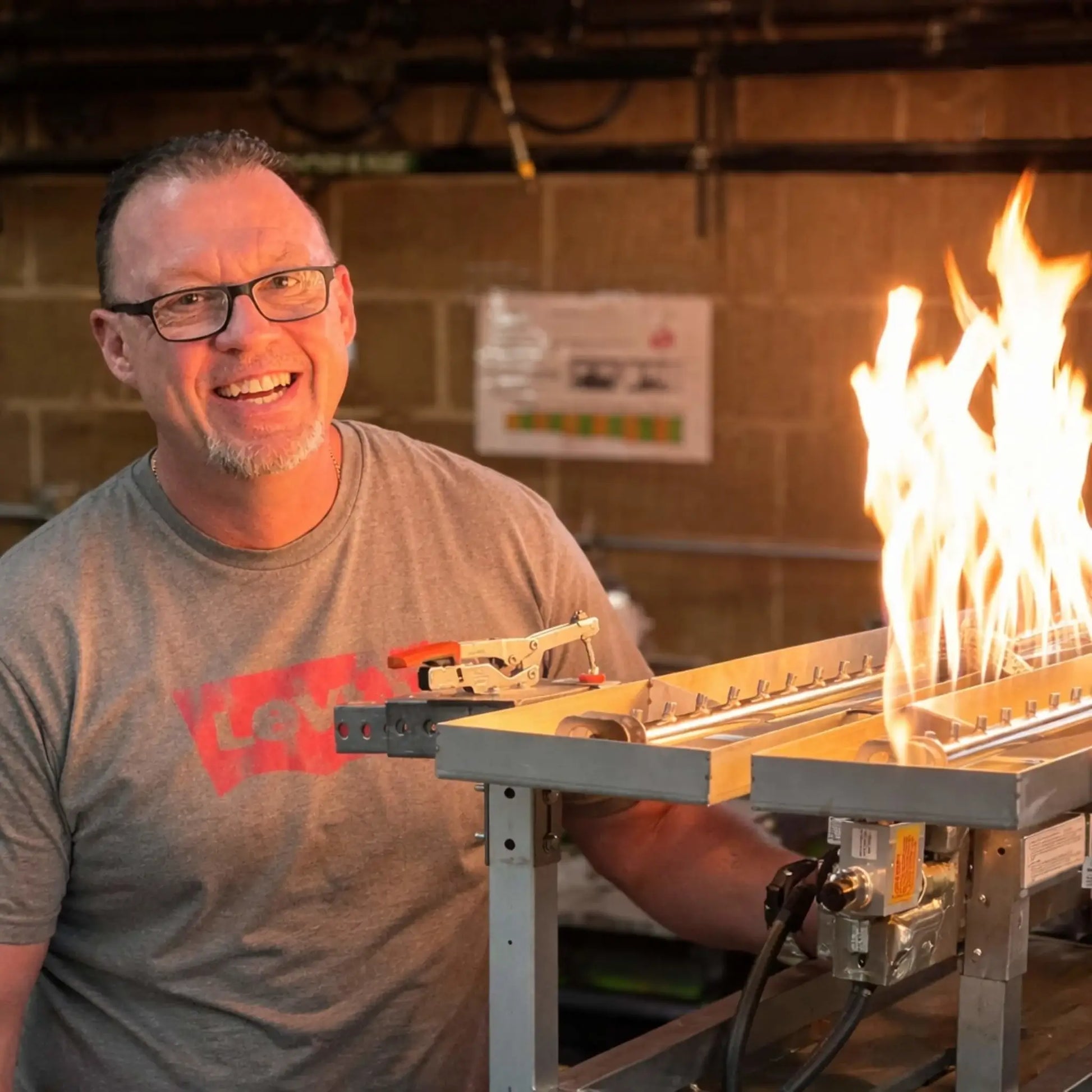

  • Smiling man demonstrating HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner system indoors, showing active flames rising from the burner. The high capacity match lit ignition setup is mounted on a test stand, emphasizing performance and flame height control.

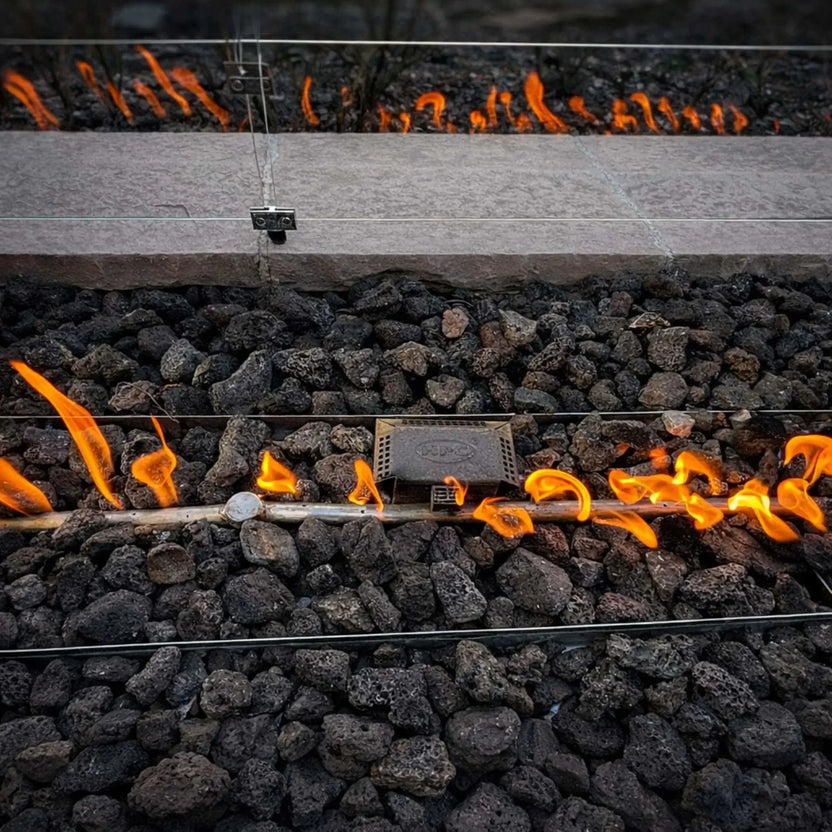

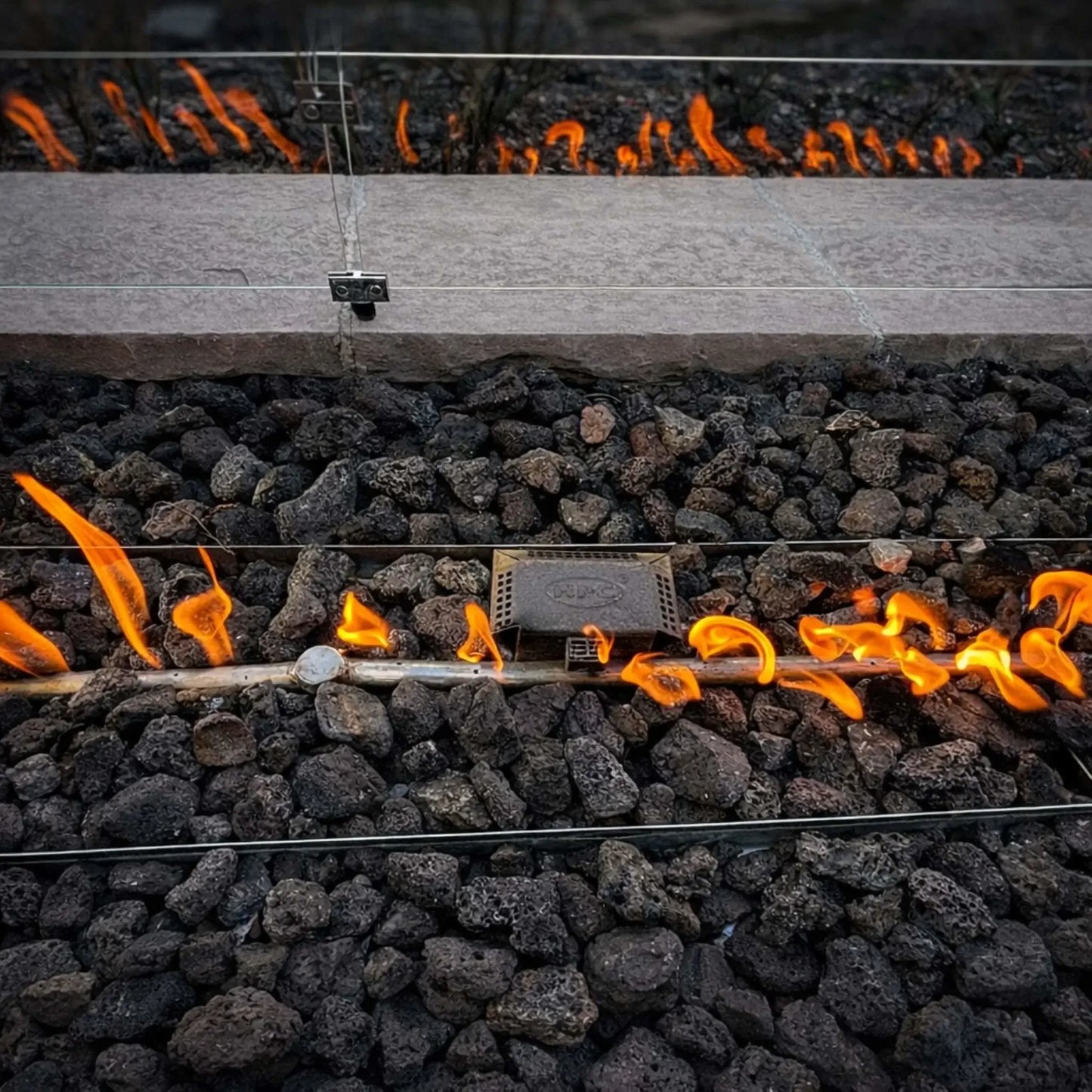

  • Close-up of HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner system producing a clean linear flame across black lava rock. The high capacity match lit ignition burner is visible beneath a glass wind guard, highlighting even flame distribution and modern fire pit design.

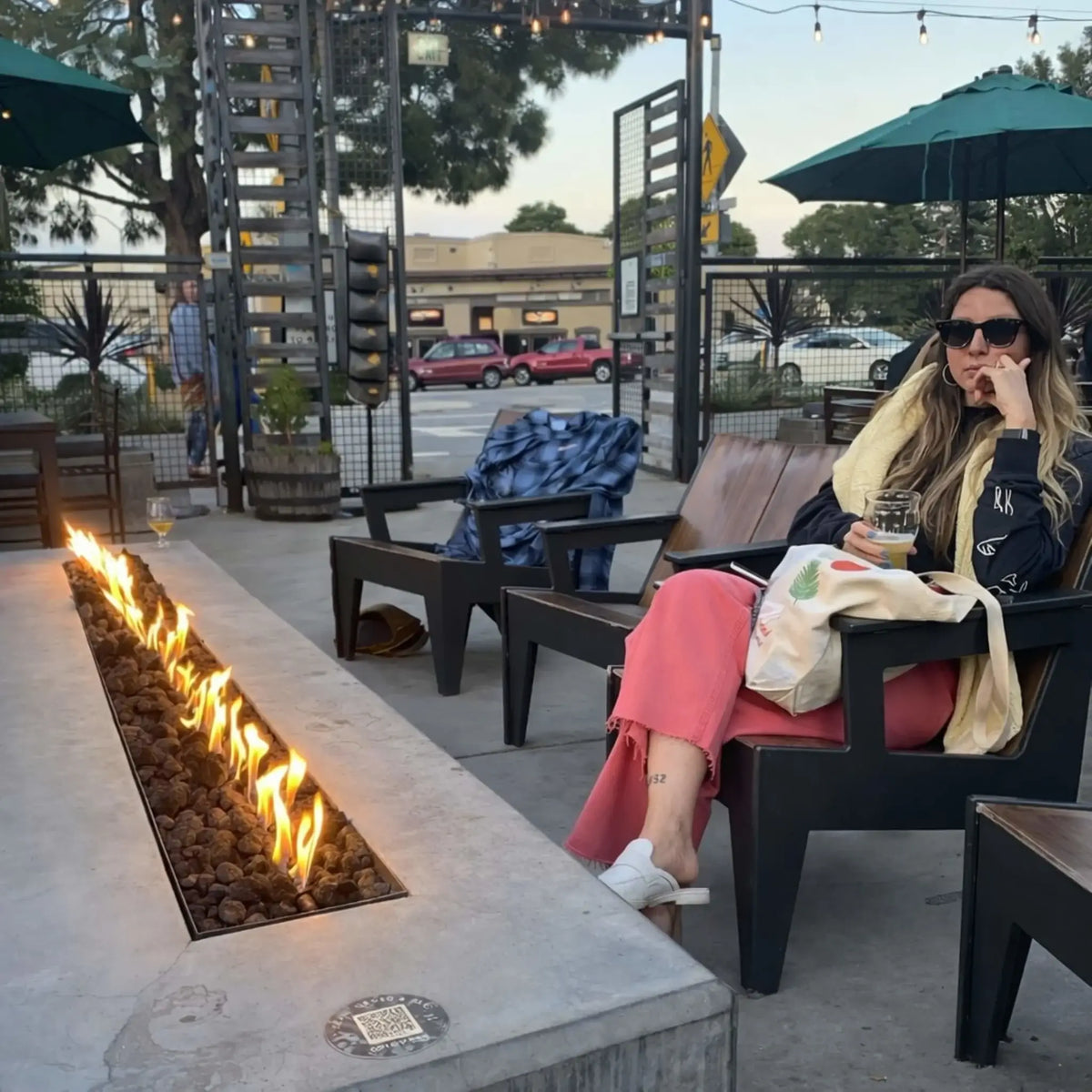

  • Outdoor patio seating area featuring HPC Fire Hearth Products Controls torpedo linear interlink drop in pan and T burner system built into a concrete fire table. A woman relaxes nearby as a long row of flames burns steadily through lava rock, showcasing real-world lifestyle use.

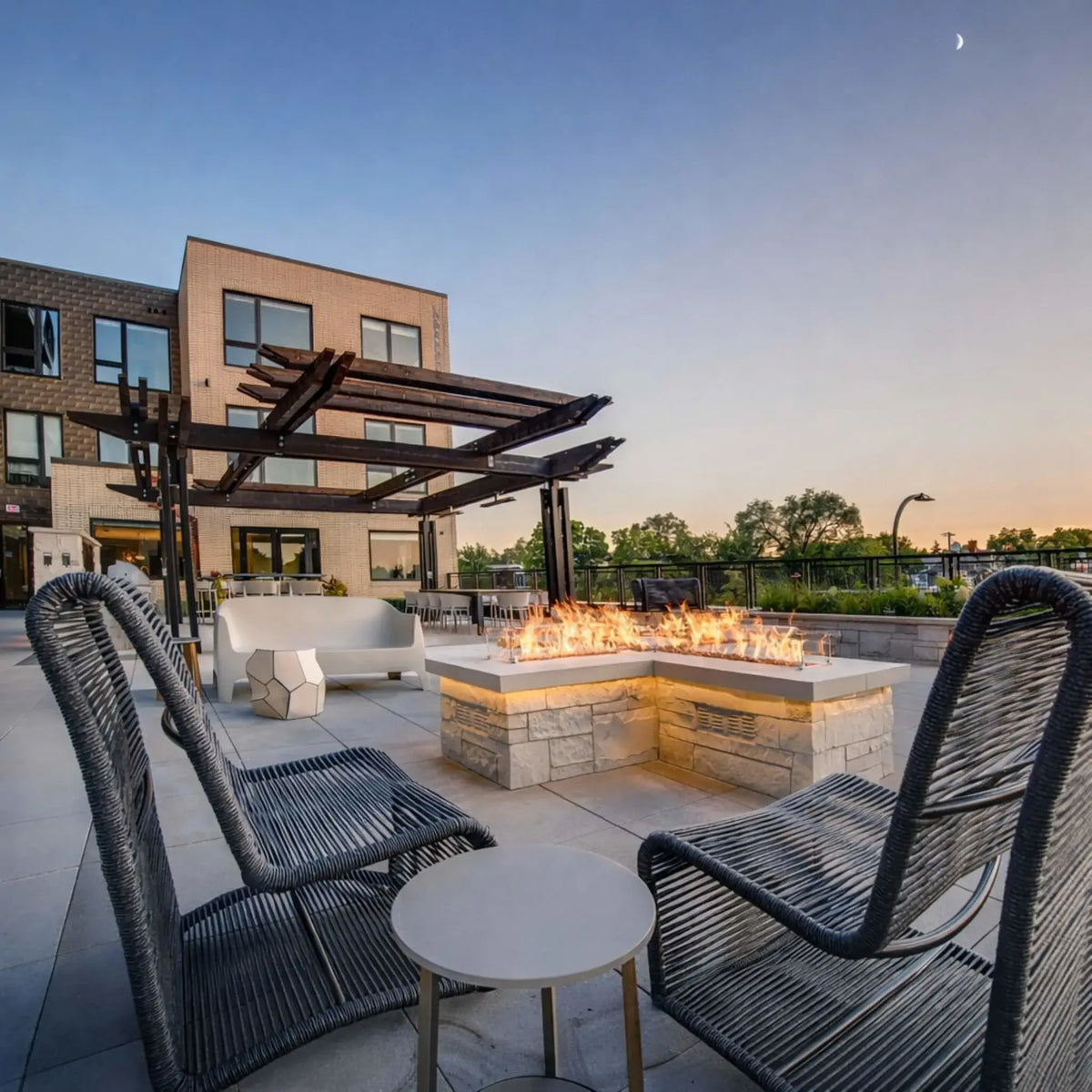

  • Modern rooftop lounge featuring HPC Fire Hearth Products Controls torpedo linear interlink drop in pan and T burner fire table centered between woven lounge chairs. Flames glow within a rectangular fire feature under a pergola, creating a contemporary outdoor entertaining space.

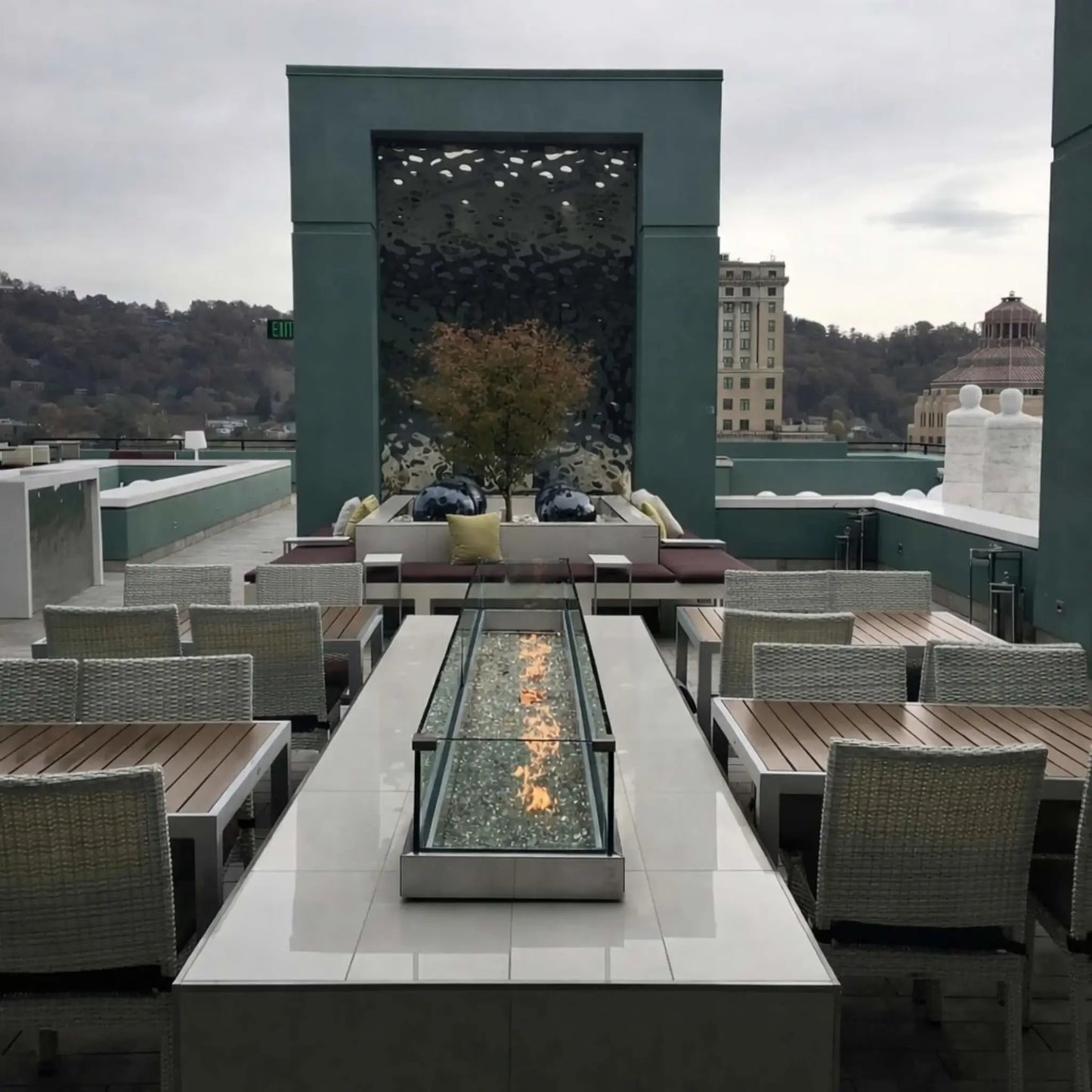

  • Upscale rooftop seating area with a long glass-enclosed fire table powered by HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner. Flames flicker over fire glass, framed by symmetrical seating and a decorative water wall backdrop.

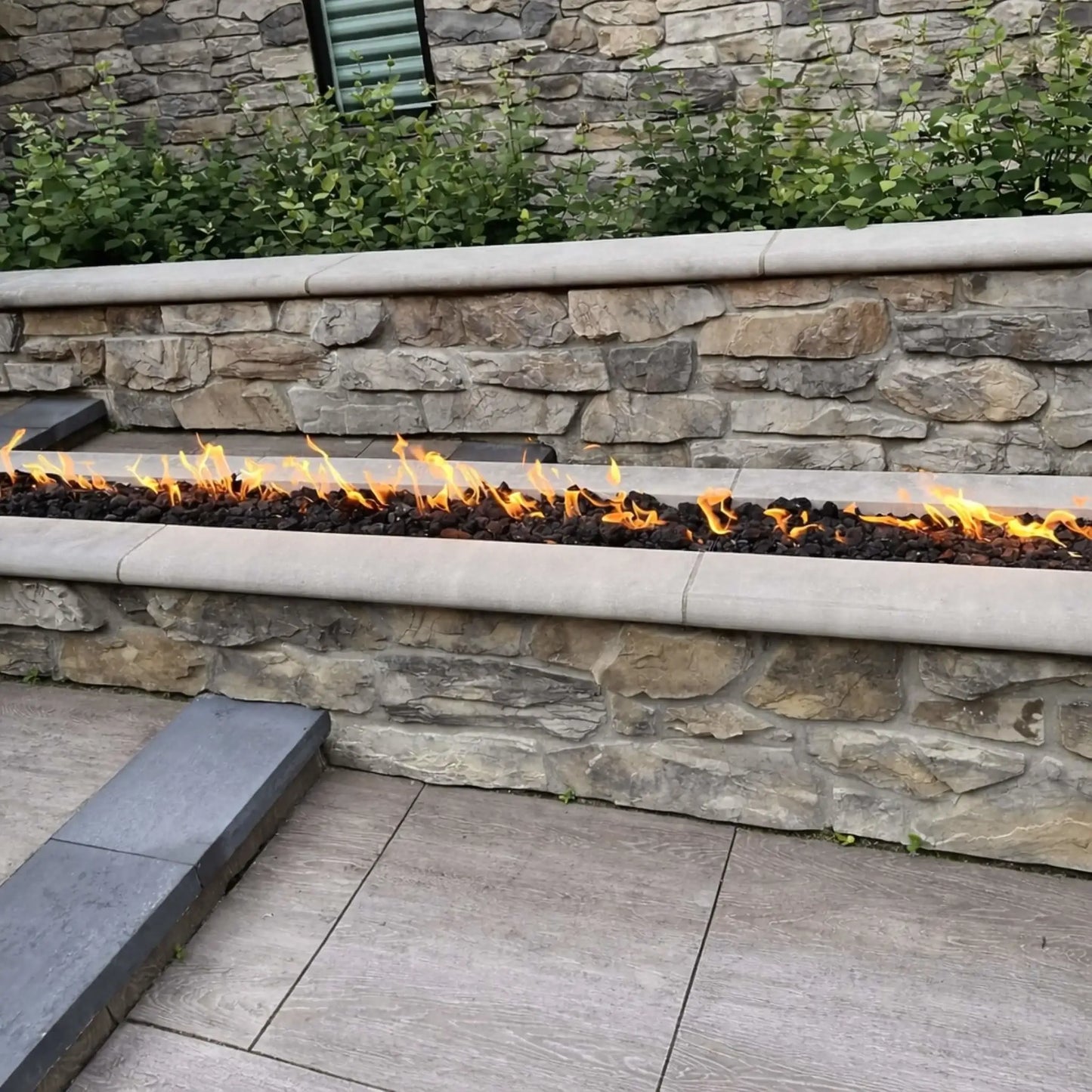

  • Residential stone retaining wall fire feature showcasing HPC Fire Hearth Products Controls torpedo linear interlink burner system. A narrow flame line runs through black lava rock, integrated seamlessly into tiered landscaping with steps and natural stone textures.

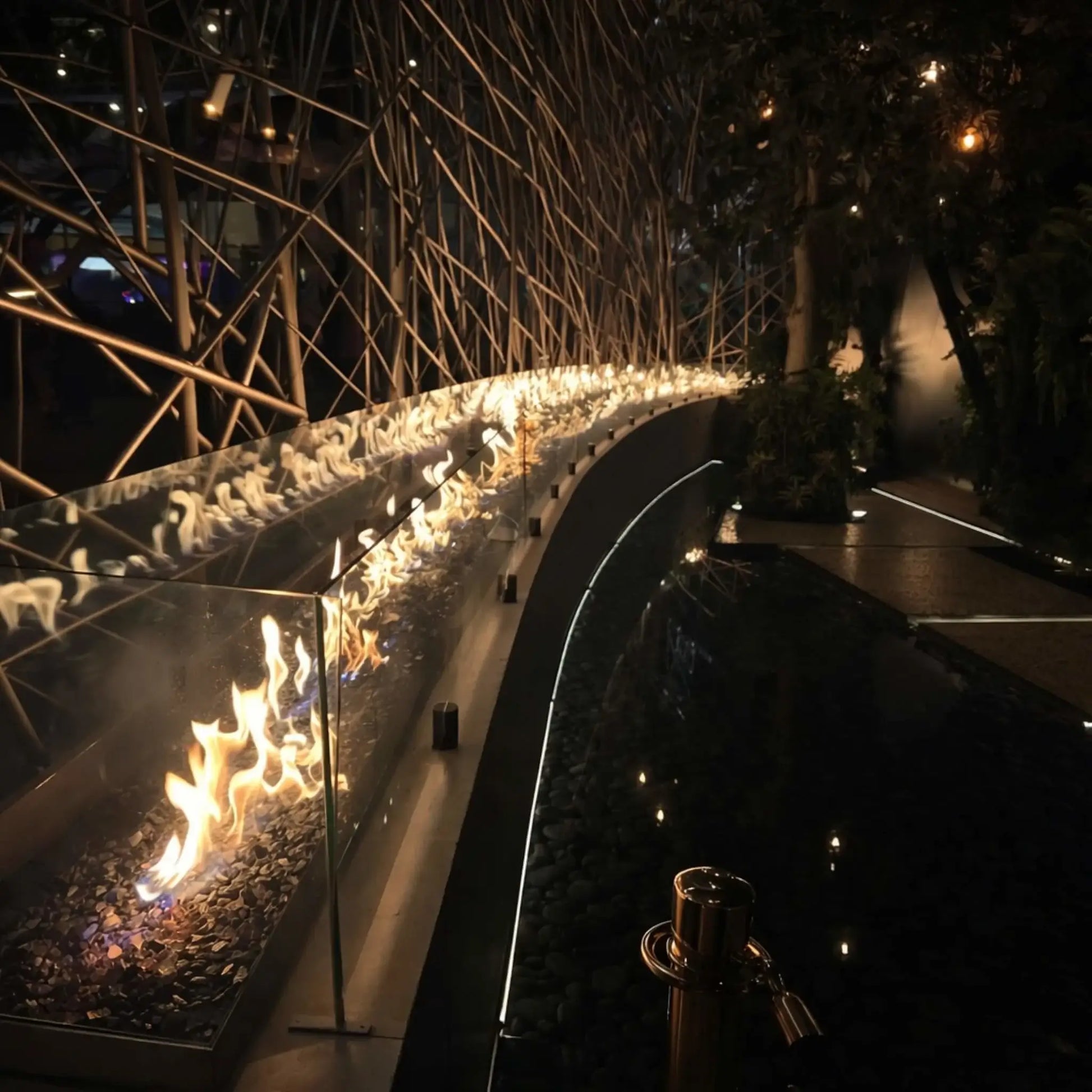

  • Evening shot of a curved commercial fire installation using HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner system. Flames reflect in water below while a glass wind guard protects the fire, creating a dramatic ambient lighting effect.

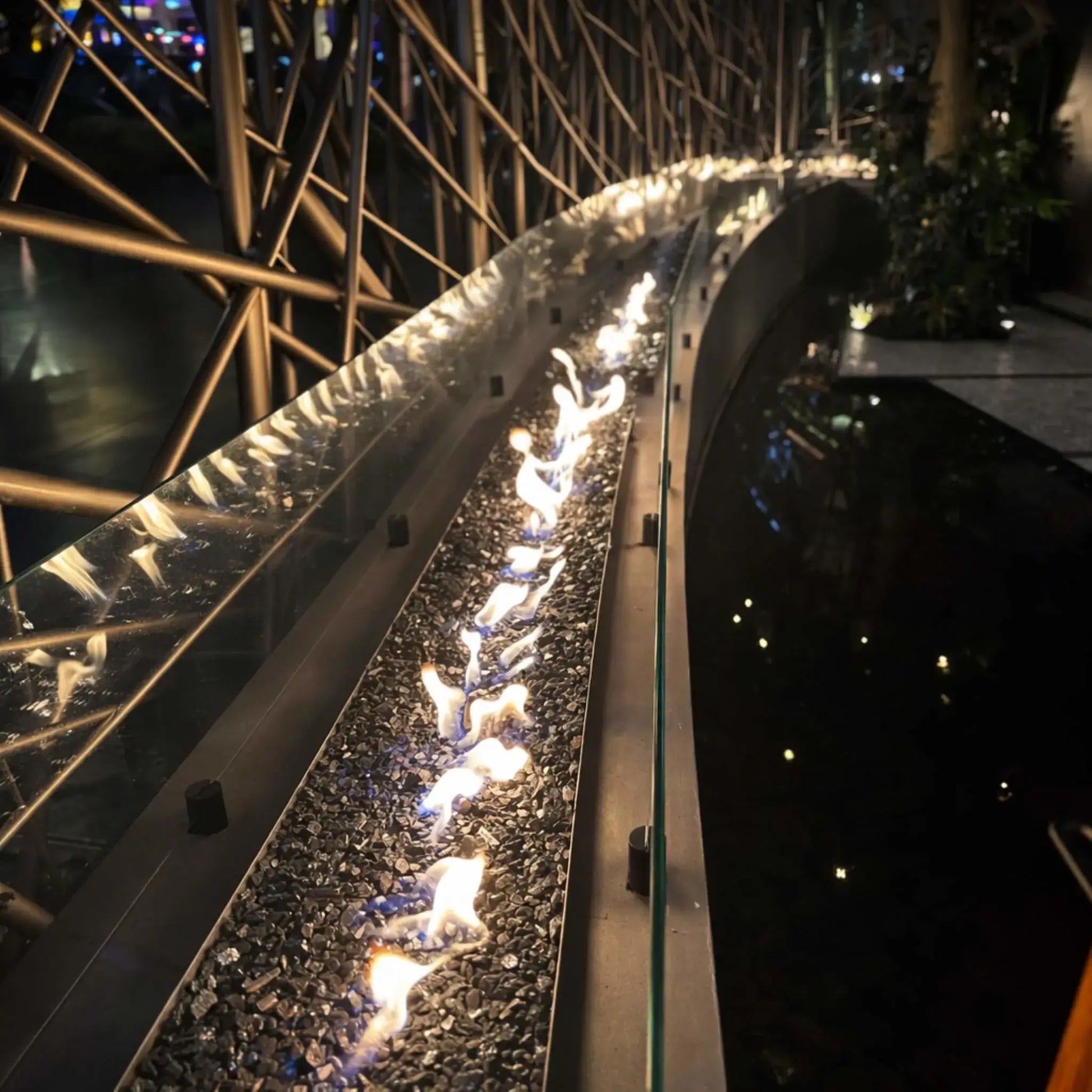

  • Close-up perspective of HPC Fire Hearth Products Controls torpedo linear interlink burner flames running along a curved fire feature with fire glass media. The glass wind guard and reflective surfaces enhance the visual depth of the high capacity match lit ignition system.

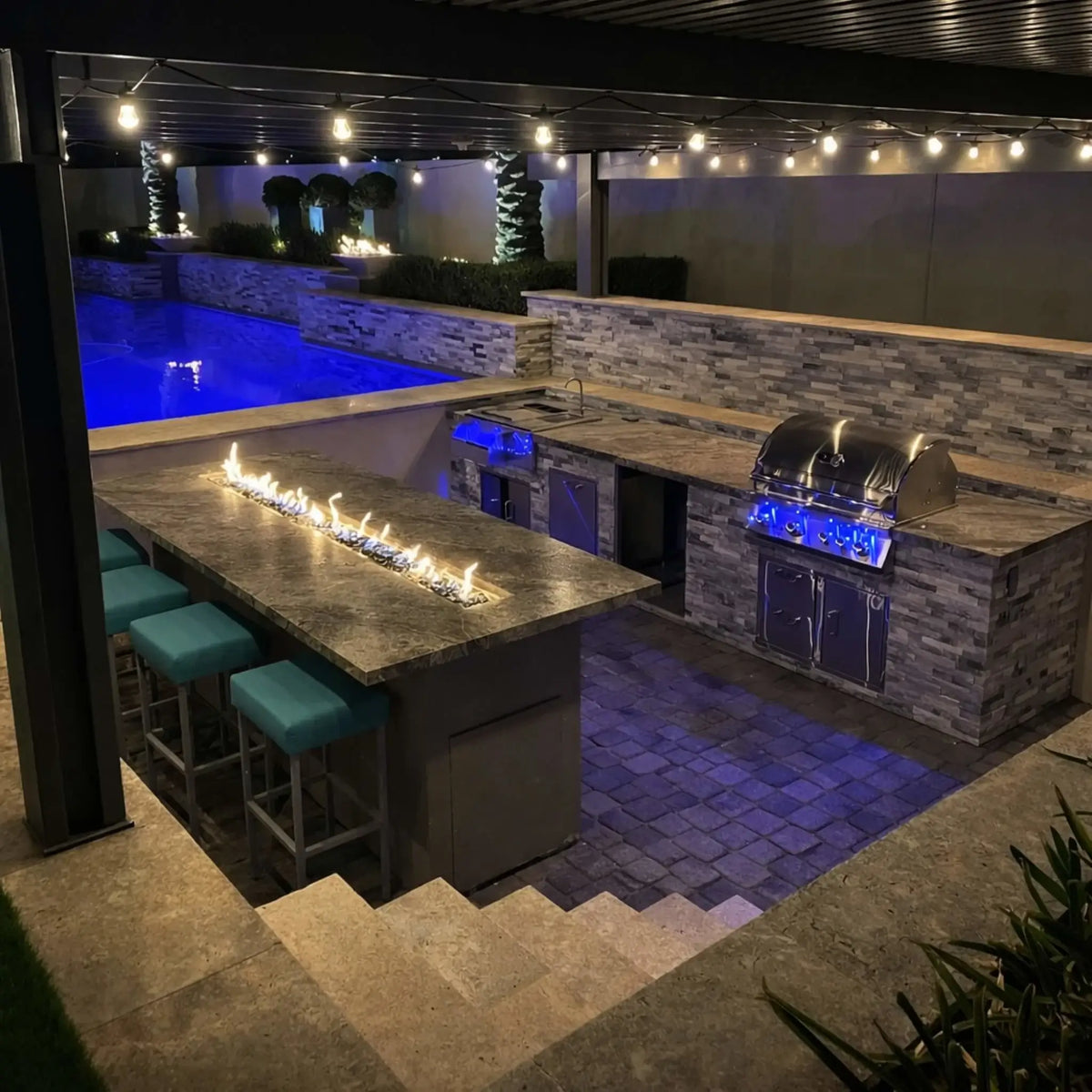

  • Luxury outdoor kitchen and bar area featuring HPC Fire Hearth Products Controls torpedo linear interlink drop in pan and T burner built into a granite countertop. Linear flames run along the bar seating area, with a pool, grill station, and string lighting completing the upscale backyard design.

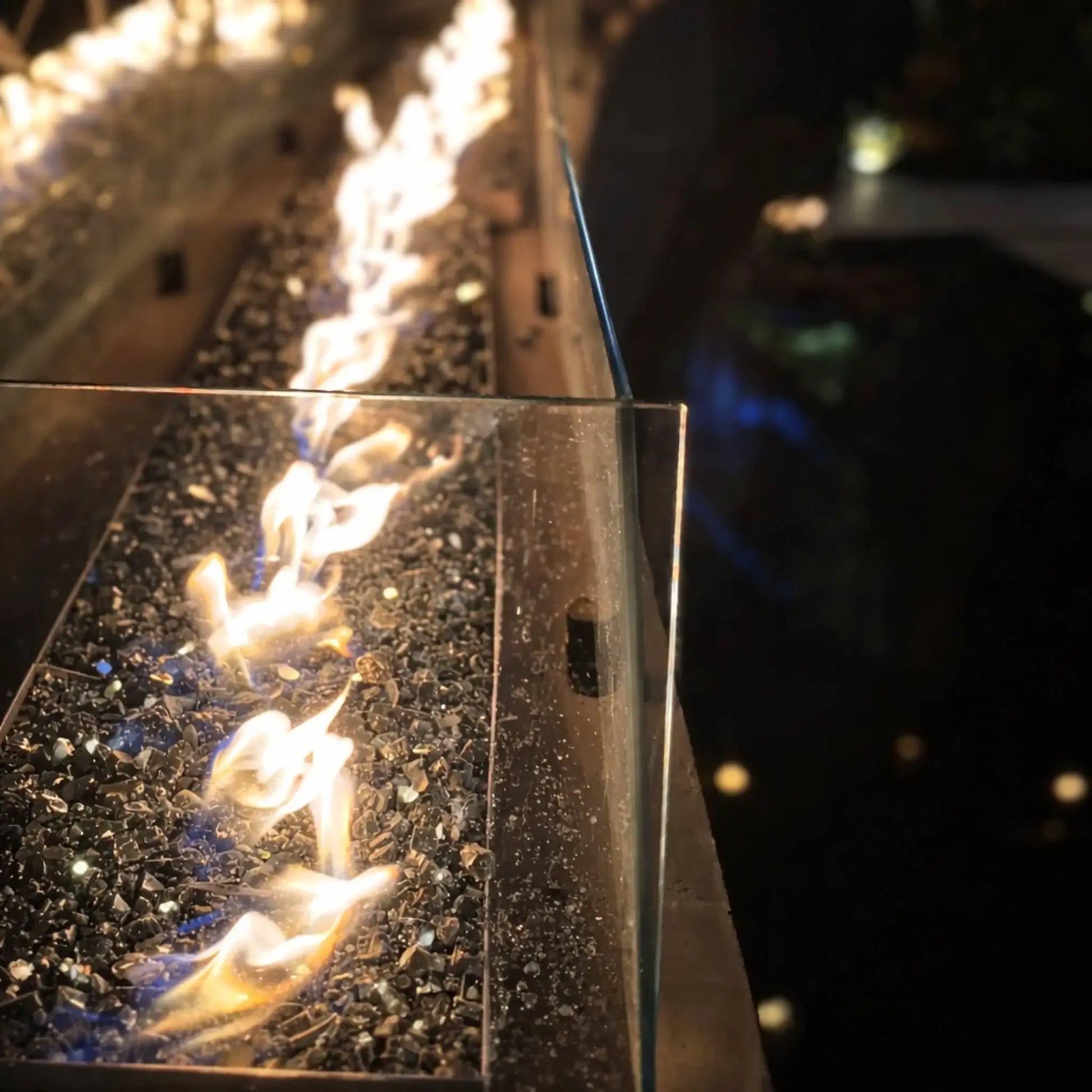

  • Close-up view of HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner with high capacity match lit ignition, showing bright flames dancing over dark fire glass. A clear glass wind guard lines the edge, while reflections shimmer in nearby water, emphasizing the sleek, modern fire feature design.

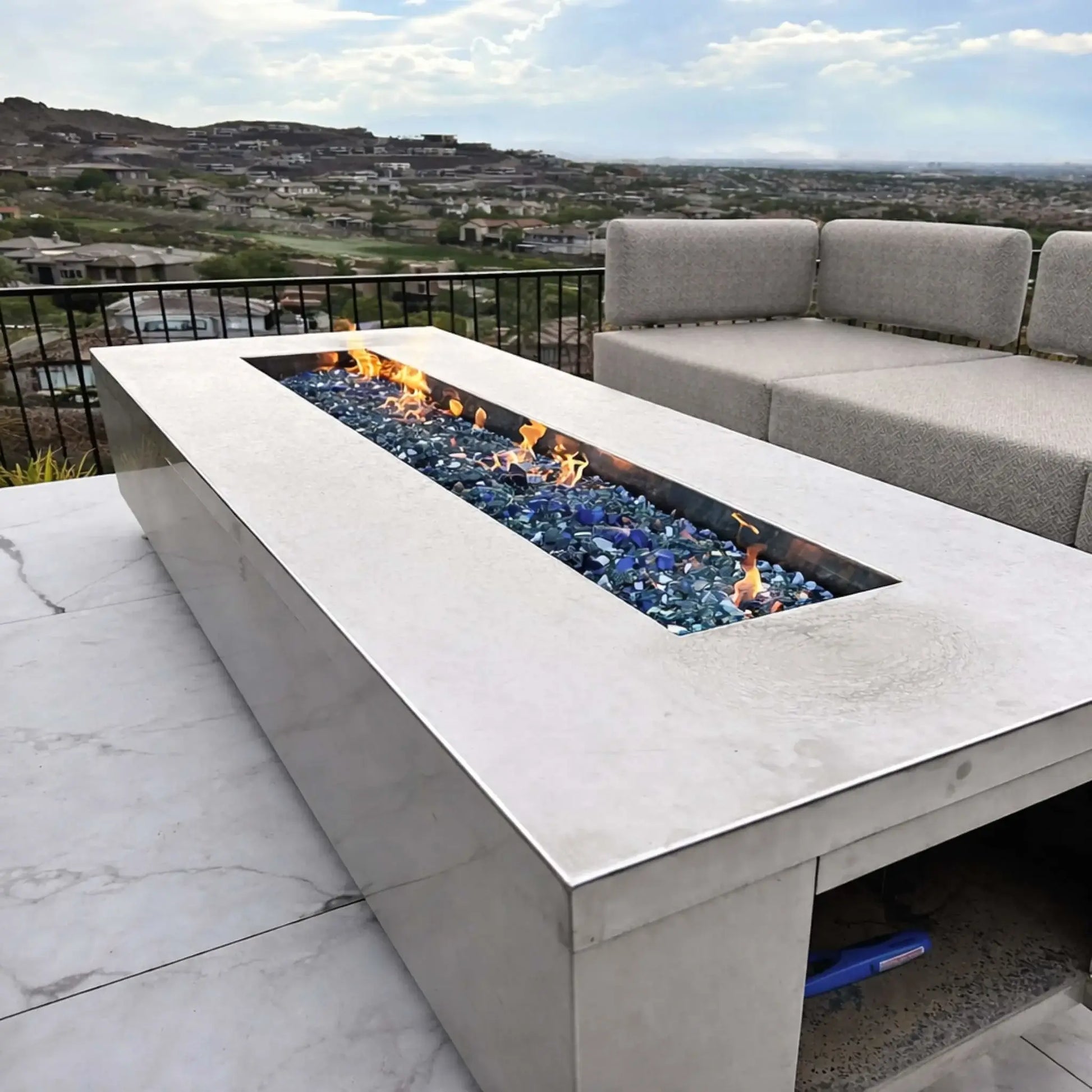

  • HPC Fire Hearth Products Controls torpedo linear interlink burner installed in a contemporary rectangular fire table with blue fire glass. Set on a balcony overlooking a hillside neighborhood, the long flame feature creates a clean, modern outdoor lounge space with neutral seating.

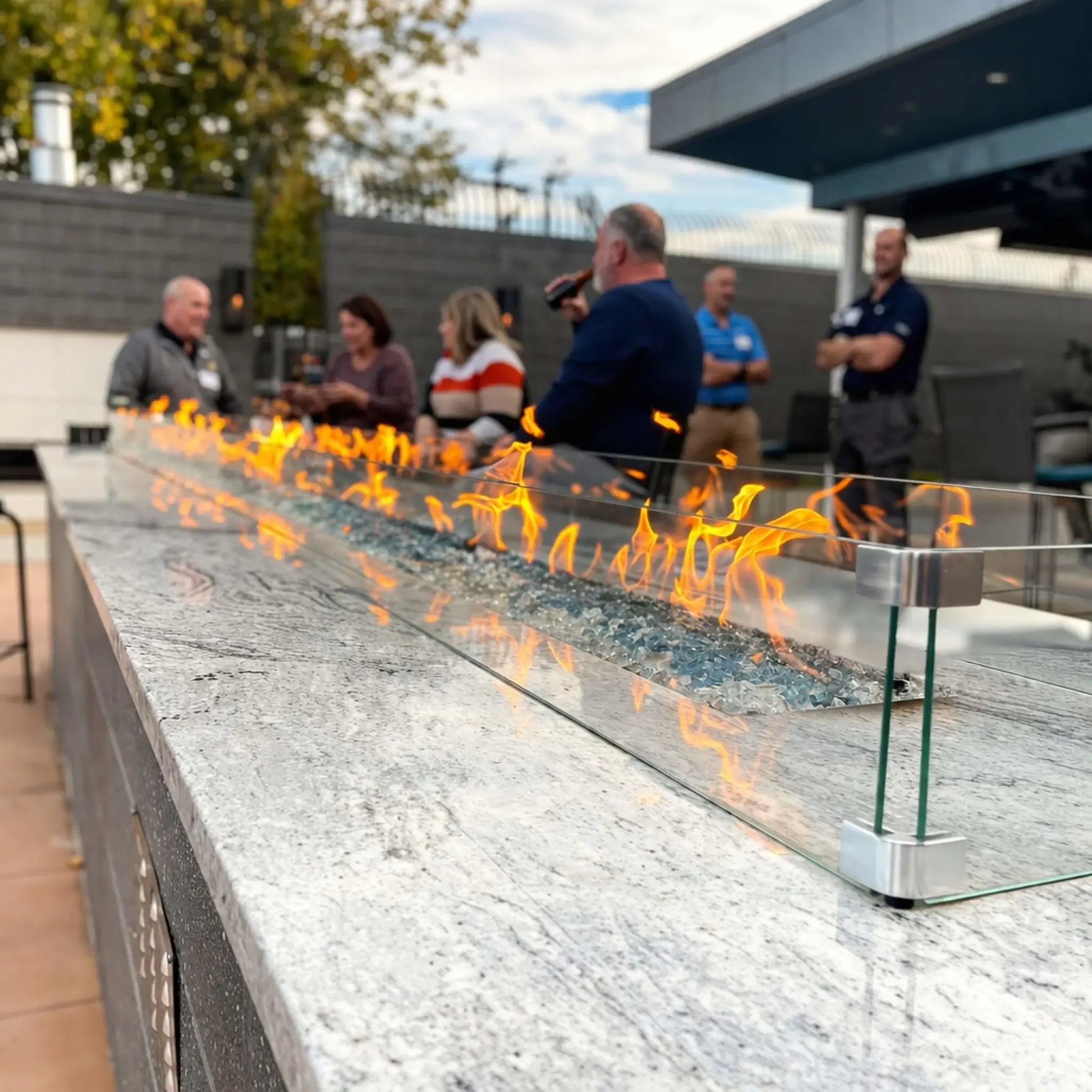

  • Outdoor gathering scene featuring HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner fire feature. A long glass-protected flame runs across a stone counter while people stand and socialize in the background, highlighting the fire feature as a focal point for entertaining.

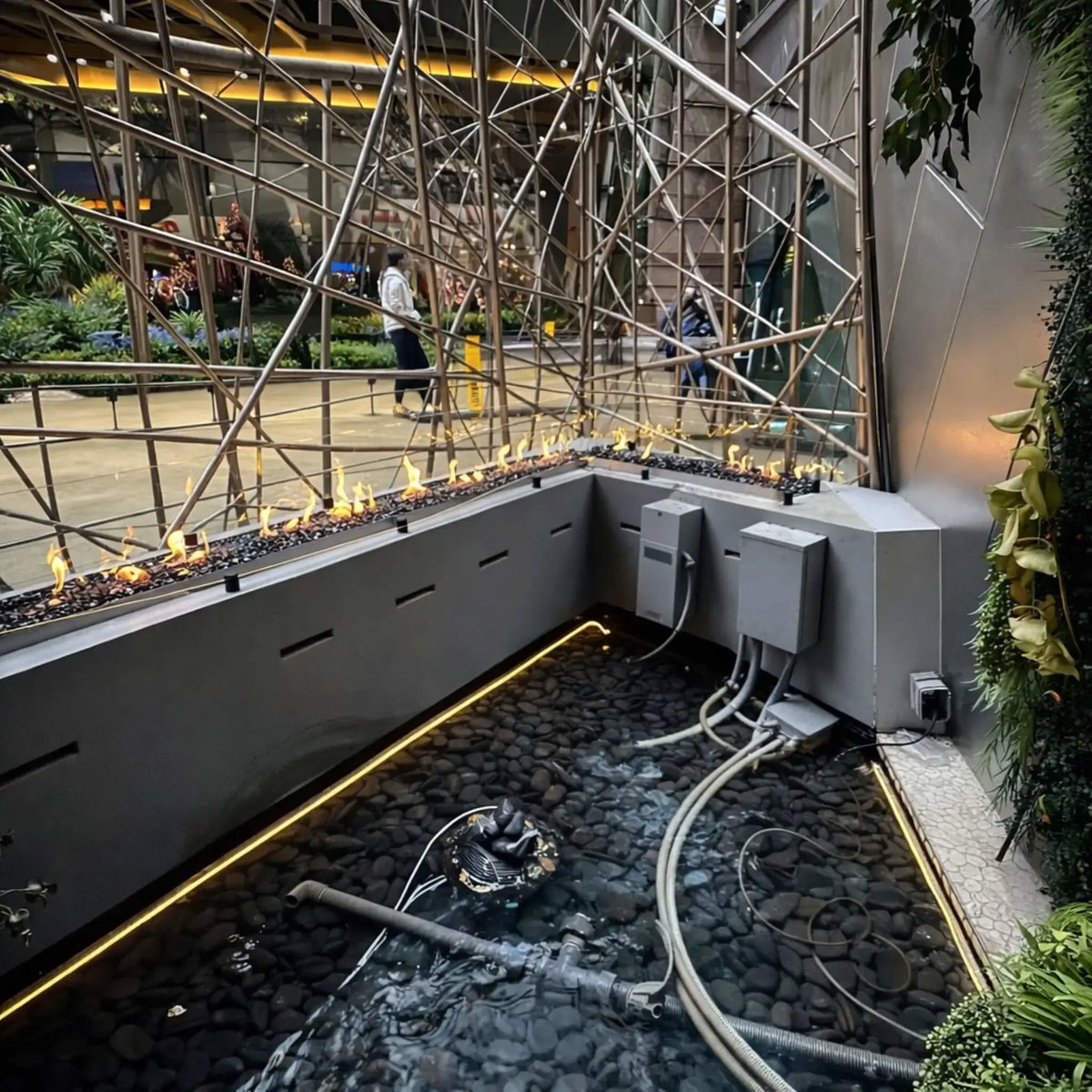

  • Commercial installation of HPC Fire Hearth Products Controls torpedo linear interlink burner system positioned above a shallow water bed filled with black stones. Visible plumbing and control boxes beneath the feature reveal the functional setup behind the continuous linear flame display.

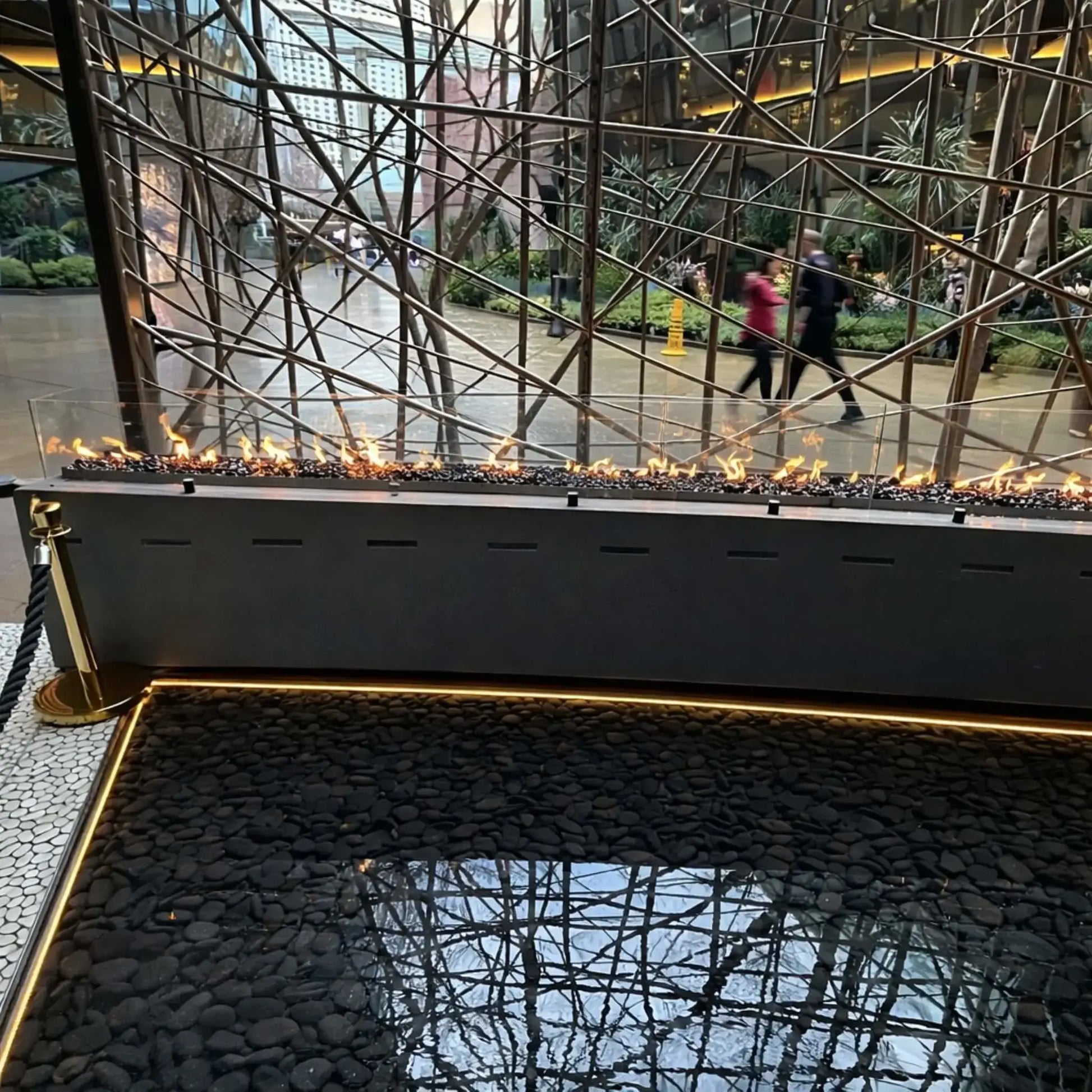

  • Wide shot of HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner creating a long line of flames above a reflective water feature. The installation sits in a modern urban courtyard with architectural metal lattice structures and passersby in the background.

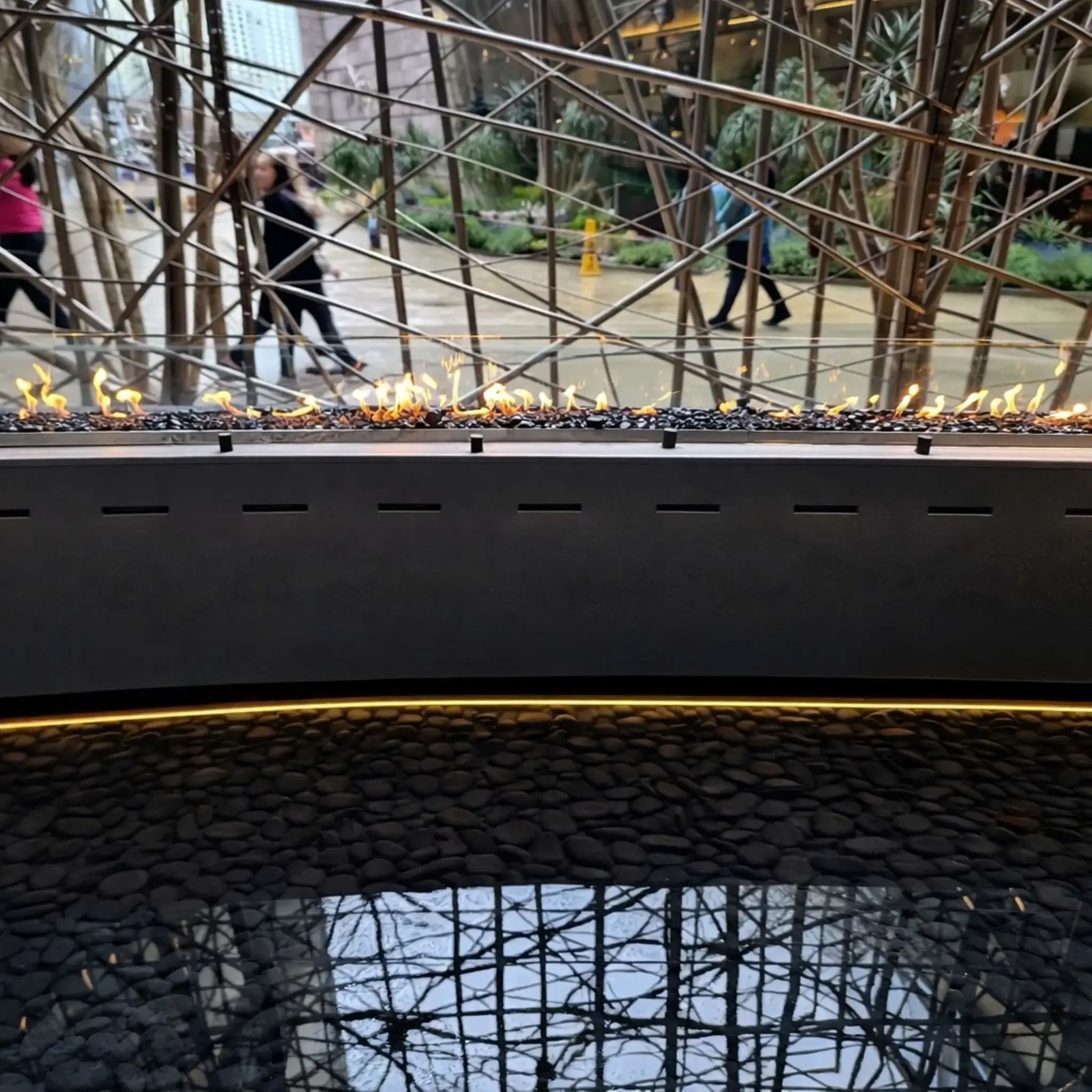

  • Front-facing view of HPC Fire Hearth Products Controls torpedo linear interlink burner system integrated into a curved fire feature. Flames stretch evenly across the length, while warm LED lighting beneath highlights smooth river stones and reflective water below.
  • Angled perspective of HPC Fire Hearth Products Controls torpedo linear interlink pan and T burner installed in a curved commercial fire feature. Flames glow above a bed of fire media, with landscaped greenery and stone flooring enhancing the upscale outdoor environment.

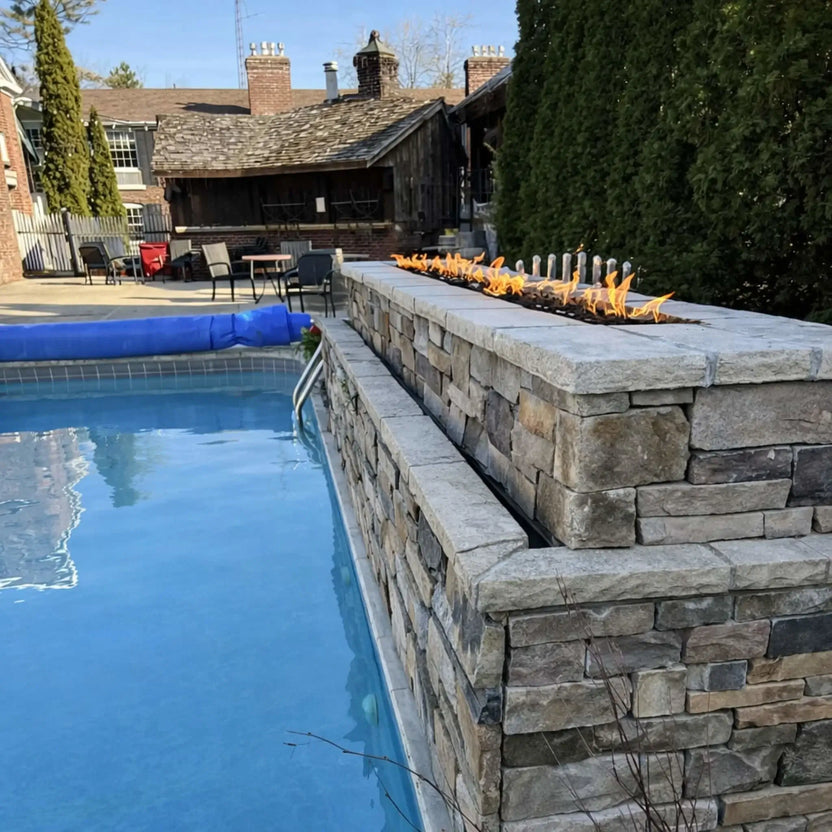

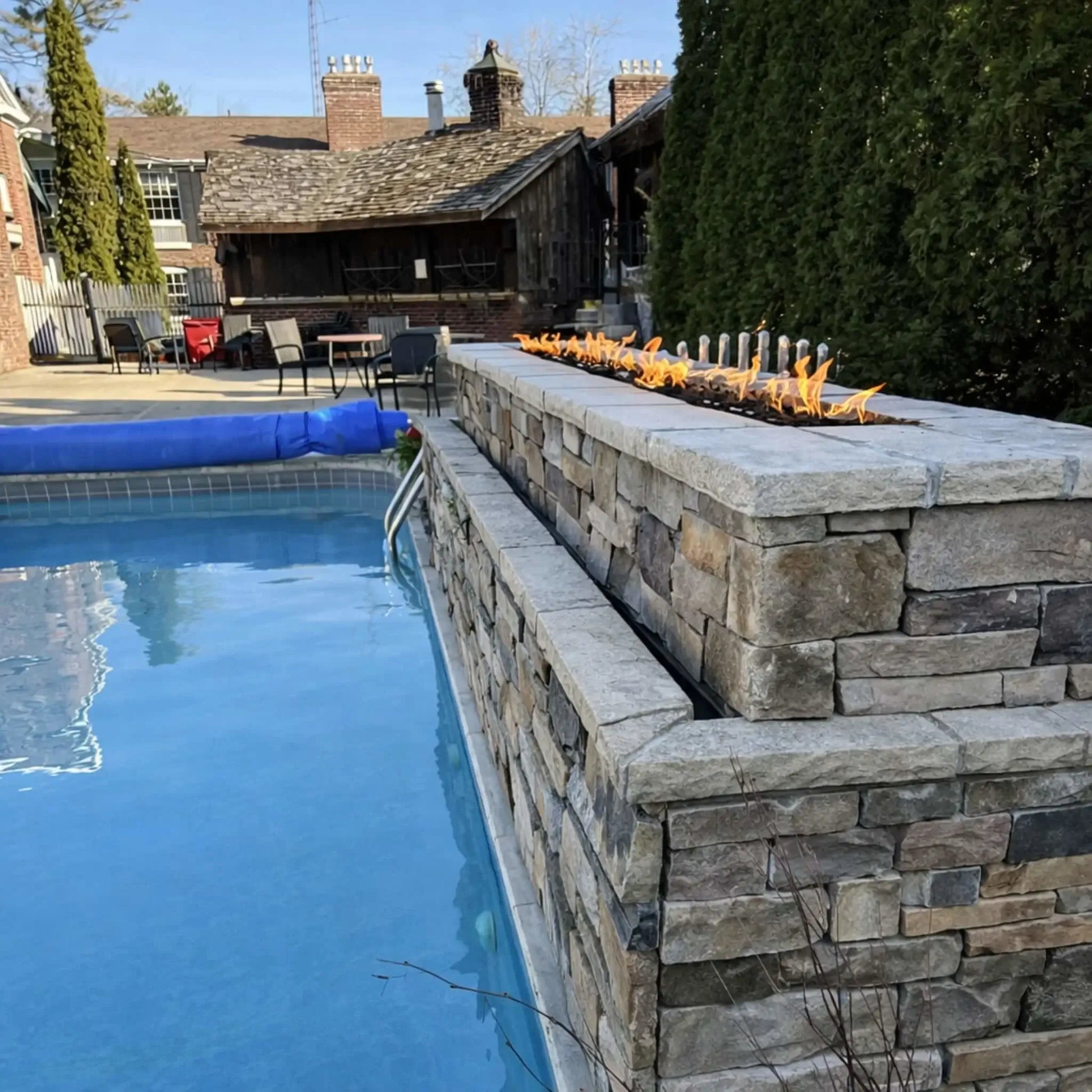

  • Backyard poolside installation of HPC Fire Hearth Products Controls torpedo linear interlink burner built into a raised stone wall. A clean linear flame runs along the top, complementing the swimming pool, patio seating, and traditional residential architecture in the background.
  • Close-up of a brass universal gas orifice fitting with clearly labeled NG and LP directions, designed for controlling gas flow in fire pit burners. The precision-machined component features threaded connections for easy installation and conversion between natural gas and propane systems.
1 23

Linear Interlink 25" - 121" Fire Pit Burner Kit - High Capacity Match Lit Ignition by HPC Fire

Linear Interlink 25" - 121" Fire Pit Burner Kit - High Capacity Match Lit Ignition by HPC Fire

Ships in: 7-10 Business Days (Special Order)

TOR-CFPK/LINEAR25x8 KIT

Fuel Type
Size
$596.60 USD
$628.00 USD $596.60 USD
Sale Sold out
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

Fire Pit Insert

  • Torpedo Burner
  • Bowl (Drop-in) Style Pan
  • 1/2" or 3/4" Straight, 1/4 Turn Key Valve and key
  • 36" Whisper Flex Gas Line

*Additional Flex Line Needed (Sold Separately) to connect from to Gas line Gas Inlet side of Key Valve

Specifications

Length:

  • 25" ID
  • 37" ID
  • 49" ID
  • 61" ID
  • 73" ID
  • 97" ID
  • 121" ID

Width: 8" ID

Height: 10.25"

Material/Finish: Stainless Steel

Fuel Type: Natural Gas or Propane Gas

Heat Output (BTUs): 75K - 300K BTUs

Ignition Type: Match Lit Ignition

Warranty: Limited Warranty

  • Stainless Steel Fire Pit and Outdoor Fireplace Burners - Lifetime Warranty
  • Electronics, Gas Valve: Commercial - 1 year; Residential - 3 year.
  • Pilot Assembly: Commercial - 1 year; Residential - 2 year.
  • Stainless Steel Pan, Valve Box: Commercial - 1 year; Residential - 5 years

Assembly: Some Assembly Required

Documents & Downloads

Shipping & Returns

Shipping: Depending on Size

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

or

  • This Product Ships LTL (Freight) and includes *Free Curbside Delivery For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 20% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.

Unleash the full potential of your outdoor fire pit with the Linear Interlink 25" - 121" Fire Pit Burner Kit by HPC Fire. Designed for those who demand high-performance and versatility, this high-capacity match lit kit includes everything you need to craft the perfect fire pit, all in one convenient package. Though not CSA-certified, these burner kits surpass traditional BTU limits while maintaining safe and family-friendly operation.

Key Features:

  • Complete Kit: Includes burner, pan, valve with chrome flange, flex line, and fittings—everything you need for an easy fire pit assembly.
  • Durable Construction: Crafted from #304, 18-gauge stainless steel for long-lasting reliability and resistance to outdoor elements.
  • Innovative Design: Features a raised hub to mitigate water intrusion and weep holes for efficient drainage, ensuring reliable performance in all weather.
  • High BTU Output: Exceeds the BTU limits set by CSA certification standards for an impressive flame that elevates any outdoor gathering.
  • Customizable Options: Available in multiple sizes to suit unique fire pit designs and preferences.

Installation Considerations:

  • Ensure a minimum of 2" clearance between the bottom of the insert and the ground.
  • Maintain ventilation with at least two sides open and a minimum of 50% free air space within the enclosure.
  • Ensure a 48" clearance from the fire pit insert to any walls for safe operation.

Elevate your outdoor living space with the Linear Interlink 25" - 121" Fire Pit Burner Kit by HPC Fire, the ultimate solution for creating a safe, high-capacity, and visually stunning fire feature tailored to your needs.
